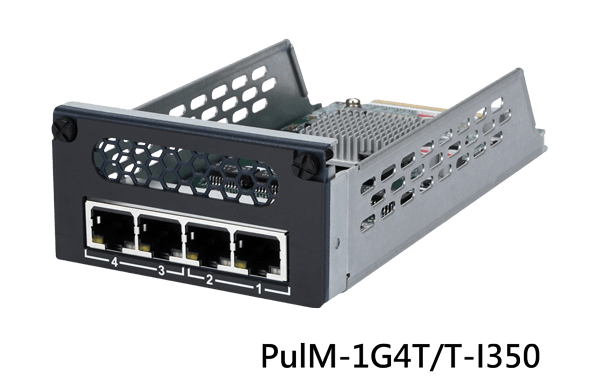

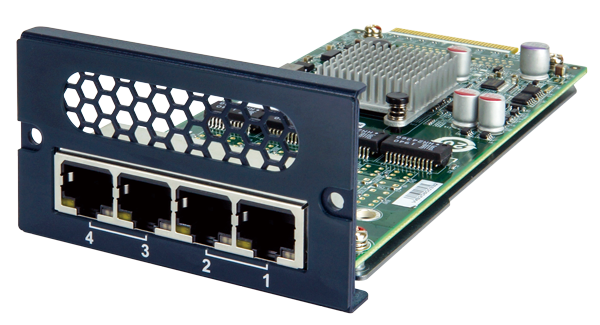

PulM-1G4T-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS

  • Overview

    • 1 x Intel® Ethernet Controller I350-AM4
    • 4 x GbE RJ-45 connectors
    • 2 PCIe2.0 x4
    • LAN Bypass (by sku)
    • CE/FCC/RoHS compliant
  • Features

    Block Diagram

    Hardware Installation

    Install the PulM-1G4T-I350 series networking module into the slot of the PUZZLE series. The Slot A supports 8 lanes from CPU (1 PCIe x8 or 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4 PCIe x2). The PulM-1G4T-I350 is can installed into the Slot A & Slot B.


  • Specifications

    • Hardware Spec.

      Spec Item Description
      I/O Interface
      Ethernet4 x LAN
      Falt-tolerance
      LAN BypassYes (by sku)
      Environment
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      Humidity5% ~ 90% RH, Non-condensing
      Certifications
      Safety & EMCCE/FCC/RoHS compliant
      Card Slot Interface
      PCIe2 PCIe 2.0 x4
      Card Features
      SpeedGbE
      Controller ChipIntel® Ethernet Controller I350-AM4
    • Ordering Info.

      Item No. Description

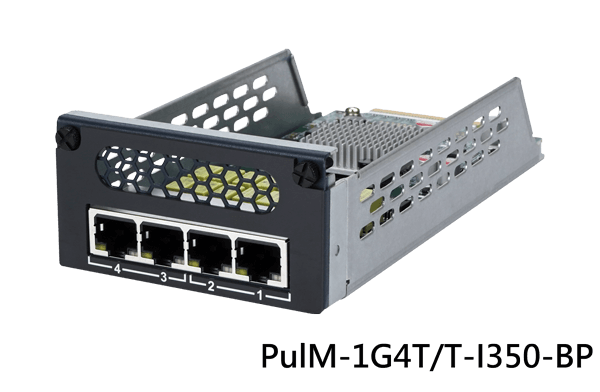

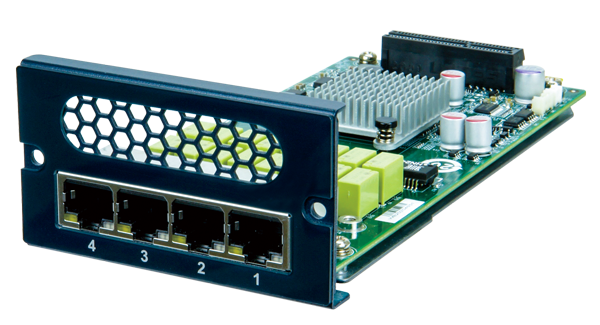

      PulM-1G4T-I350-BP-R10Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x RJ-45 by 2 PCIe 2.0 x4 with bypass interface, RoHS.
      PulM-1G4T-I350-R10Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x RJ-45 by 2 PCIe 2.0 x4 interface, RoHS.
    • Package Contents

      • 1 x PulM-1G4T-I350 or PulM-1G4T-I350-BP module

      • 1 x L-shaped T10 Plum Wrench

      • 2 x Torx Screws

      • 1 x QIG
