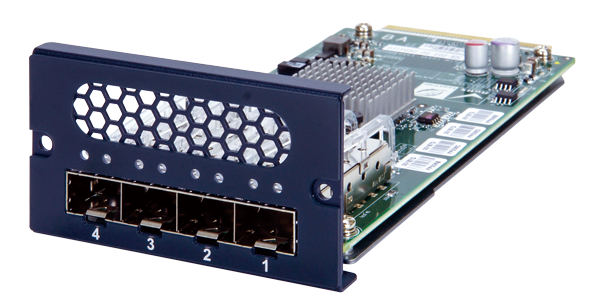

PulM-1G4SF-I350

Intel® Ethernet Controller I350-AM4 based Network Interface Card with  4 x SFP by 2 PCIe 2.0 x4 interface.

  • Overview

    ‧1 x Intel® Ethernet Controller I350-AM4
    ‧4 x 1 GbE SFP connectors
    ‧2 PCIe 2.0 x4
    ‧RoHS compliant
  • Features

    Block Diagram

    Hardware Installation

    Install the PulM-1G4SF-I350 networking module into the slot of the PUZZLE series. The Slot A supports 8 lanes from CPU (1 PCIe x8 or 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4 PCIe x2). The PulM-1G4SF-I350 is can installed into the Slot A & Slot B.


  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm)165.50 (L) x 77.8 (W) x 44.2 (H)
      I/O Interface
      Ethernet4 x LAN (4 x SFP)
      Environment
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      Humidity5% ~ 90% RH, Non-condensing
      Certifications
      Safety & EMCRoHS compliant
      Card Slot Interface
      PCIe2 PCIex4
      Card Features
      Speed1GbE
      Controller ChipIntel Ethernet Controller I350-AM4
    • Ordering Info.

      Item No. Description
      PulM-1G4SF-I350-R10Intel® Ethernet Controller I350-AM4 based Network Interface Card with 4 x SFP by 2 PCIe 2.0 x4 interface.
    • Package Contents

      • 1 x PulM-1G4SF-I350 module

      • 1 x L-shaped T10 Plum Wrench

      • 2 x Torx Screws

      • 1 x QIG
