DRPC-230-ULT5

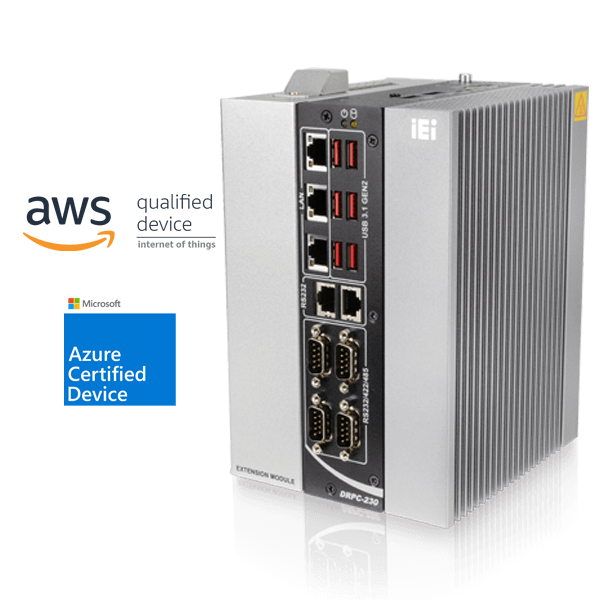

Fanless DIN-Rail Embedded System with Intel® Core™ CPU

  • Overview

    ● Whiskey Lake Core™ i5-8365UE / Whiskey Lake Celeron™ 4205U
    ● Triple GbE LAN Ports
    ● Multiple USB 3.2 Gen 2 (10Gb/s)
    ● Multiple COM Ports
    ● Modularized Flexible Expansion
  • Features

    Suitable for Your Intel Core Solution Box PC

    DRPC-230 is designed to achieve AI inference and PoE applications through its expansion feature. The system is compatible with IEI's own accelerator cards (Mustang-V100-MX8, Mustang-V100-MX4) and PoE cards (GPOE-4P, GPOE-2P).

    For PoE cards, DRPC-230 has reserved a 60W internal power to provide. DRPC-230 is also possible to expand I/O through the second layer; its modularized flexibility could best fit users' preferences.

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor●CPU:
      Intel® Whiskey Lake Core™ i5-8365UE
      Intel® Whiskey Lake Celeron™ 4205U
      ●Chipset:
      SoC
      ●System Memory:
      2 x DDR4 2400Hz SO-DIMM (up to 32GB)
      ●Power:
      Input : 3-pin terminal block: 12 V ~ 24 V DC
      Consumption: 12V @ 4.98 A (Intel® Core™ i5-8365UE CPU with 8GB 2400 MHz DDR4 memory)
      ●Reliability:
      Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
      Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)
      Safety/EMC - CE/FCC
      I/O Interface
      I/O Ports●6 x USB 3.2 Gen2 (DRPC-230-ULT5-C/8G/S-R10 has 4 x USB 3.2 Gen2 & 2 x USB 2.0)
      ●Ethernet:
      3 x RJ-45
      2 x PCIe GbE by Intel® I211 controller
      1 x PCIe GbE by Intel® I219 controller
      ●COM Port:
      4 x RS-232/422/485 with AFC (DB-9)
      2 x RS-232 (RJ45)
      ●Digital I/O:
      8-bit digital I/O , 4-bit input / 4-bit
      ●Display:
      1 x HDMI 1.4b (lockable)
      1 x DP
      ●TPM:
      1 x TPM 2.0 (optional)
      Expansion Slots
      Expansion Slots●M.2:
      1 x 2230 A key (PCIe/ USB2.0)
      Celeron SKU: 1 x 2230 A key (PCIe)
      ●PCIe Mini:
      1 x Full-size (PCIe/ USB 3.0/ SATA)
      ●Backplane:
      1 x PCIe by 4
      (Expansion SKU only)
      System
      Cooling method / System FanFanless
      Drive Bays1 x 2.5” SATA 6Gb/s HDD/SSD bay
      Indicator&Buttons
      Buttons1 x Power button
      1 x Reset button
      1 x AT/ATX switch
      Indicators1 x Power LED
      1 x HDD LED
      Physical Characteristics
      ConstructionExtruded aluminum alloy
      Color
      ColorBlack + Silver
      Dimensions
      Dimensions190 x 150 x 81 mm
      190 x 150 x 127 mm (Expansion SKU)
      Weight
      Weight2.9KG/ 3.2KG
      3.2KG/ 3.5KG (Expansion SKU)
      Environment
      Operating Temperature-20 ~ 60°C with air flow (SSD)
      Humidity10 ~ 95% non condensing
    • Ordering Info.

      Item No. Description
      DRPC-230-ULT5-C/8G/S-R10 Fanless embedded system, Intel®Whiskey Lake Celeron™4205U 1.8GHz (dual core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE, 6 COM, 12~24V DC and RoHS
      DRPC-230-ULT5-i5/8G-R10 Fanless embedded system, Intel®Whiskey Lake i5-8365UE 1.6GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE, 6 COM, 12~24V DC, PCIex4 extension layer and RoHS
      DRPC-230-ULT5-i5/8G/S-R10 Fanless embedded system, Intel®Whiskey Lake i5-8365UE 1.6GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE, 6 COM, 12~24V DC and RoHS
    • Package Contents

      • 1 x Din-rail mounting kit

      • 1 x Screw kit

      • 1 x SATA cable
