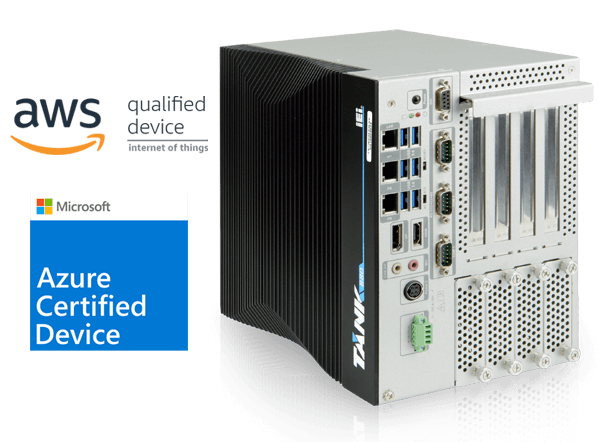

High-Performance 8th/9th Generation Intel® Core™ Processor

  • Overview

    ● 8th/9th Gen Intel® Core™ processor platform with Intel® Q370 chipset and DDR4 memory
    ● Dual independent displays with high resolution support
    ● Rich high-speed I/O interfaces
    ● On-board internal power connector for providing power to add-on cards
    ● Four accessible 2.5” HDD/SSD SATA 6 Gb/s bay (with RAID 0/1/5/10 support)
    ● Great flexibility for hardware expansion
  • Features

    High-performance Edge Computing System|TANK-880-Q370

    Now as industrial 4.0 continues booming, it is not just merely how to put your machines together, but how they can communicate smartly to run your production line with more efficiency and accuracy. Edge servers are physically close to the systems or applications that are creating the data being stored on, or used by, the server. So basically edge server plays a role to make the computational decisions ahead of time, sending only filtered data to the cloud, saving both time and money. Our TANK-880 could work as an awesome edge server. It has high-performance CPU, rich I/Os, and contains multiple expansion slots for add-on cards such as Mustang AI accelerator card and POE card to run AI inference models efficiently , assisting your cloud to reduce workload and get data organized and filtered faster!


    IoT edge computing industrial application

    IEI Edge Computing System Design Trend

    IEI Edge Computing System Design Trend

    Onboard Multiple Expansion

    IEI TANK-880-Q370 Embedded System Onboard Multiple Expansion
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor ●CPU:
      8th Gen Intel® Core™ CPU &
      Intel® Core™ i7-9700TE 1.8GHz (up to 3.8GHz, 8-core, TDP 35W)
      Intel® Core™ i5-9500TE 2.2GHz (up to 3.6GHz, 6-core, TDP 35W)
      Intel® Q370
      ●System Memory:
      2 x SO-DIMM DDR4 2666/ 2400 (8GB pre-installed) (up to 64GB)
      DC Jack: 9 V~36 V DC
      Terminal Block: 9 V~36 V DC
      Consumption: 19V @ 5.4A (Intel® Core™ i7-9700TE with 8GB memory)
      Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis
      Operating Vibration: MIL-STD-810G 514.6C-1 (SSD)
      Safety/EMC: CE/FCC
      I/O Interface
      I/O Ports ●Display:
      1 x HDMI 1.4b (up to 4096 x 2304@30Hz)
      1 x DP (up to 4096 x 2304@60Hz)
      ●6 x USB 3.2 Gen1
      3 x RJ-45
      1 x PCIe GbE by I219 controller
      2 x PCIe GbE by I210 controller
      ●COM Port:
      3 x RS-232/422/485 with AFC (DB-9 w/2.5 kV isolation protection)
      ● Digital I/O:
      8 bit Digital I/O (4-input / 4-output)
      1 x Mic in, 1 x Line out
      1 x TPM 2.0 (optional)
      Expansion Slots
      Expansion Slots ●M.2:
      1 x 2230 A key (PCIe x2/ USB2.0)
      2 x 2280 M key (PCIe x2)
      ●PCIe Mini:
      1 x Full-size (PCIe/ USB 2.0/ SATA)
      1 x PCIe by 16
      1 x PCIe by 1
      2 x PCIe by 4
      Cooling method / System Fan Fanless
      Drive Bays 4 x 2.5” HDD/SSD SATA 6Gb/s bay (with RAID 0/1/5/10 support)
      Buttons 1 x Power Button
      1 x Reset Button
      1 x AT/ATX Switch
      Indicators 1 x HDD LED
      1 x Power LED
      Physical Characteristics
      Construction Extruded aluminum alloys
      Color Black C + Silver
      Dimensions 169 x 255.2 x 225 mm
      Weight 5.4 kg/8.45 kg
      Operating Temperature -20°C ~ 60°C with air flow (SSD)
      Humidity 10% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      TANK-880-Q370-i7R/8G/4A-R10 Ruggedized Fanless embedded system with Intel®  i7-9700TE  1.8GHz, (up to 3.8GHz, 8-core, TDP 35W), 8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCIe by 4 & 1 x PCIe by 1 expansion, HDMI/DP, 9~36V DC, RoHS
      TANK-880-Q370-i5R/8G/4A-R10 Ruggedized Fanless embedded system with Intel® i5-9500TE  2.2GHz, (up to 3.6Hz, 6-core, TDP 35W), 8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCIe by 4 & 1 x PCIe by 1 expansion, HDMI/DP, 9~36V DC, RoHS
    • Package Contents

      • 1 x Chassis Screw

      • 1 x Wall Mount Bracket
