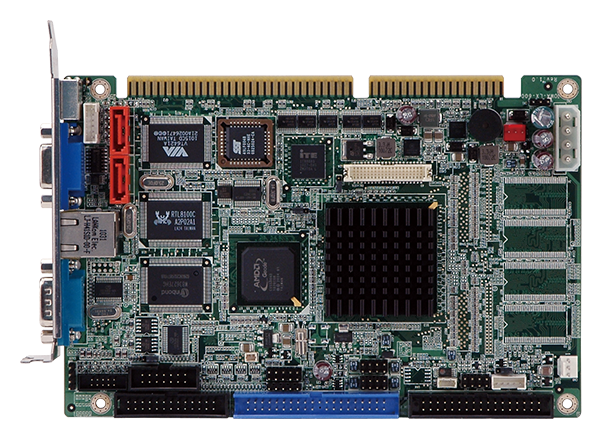

IOWA-LX

Half-size Pure ISA CPU Card with On-board AMD Geode™ LX600 Processor (366 MHz), 128KB L2 cache, On-board 128MB Memory

  • Overview

    ● ISA CPU card with on-board AMD Geode™ LX600 processor (366 MHz), 128KB L2 cache
    ● Flexible on-board DDR SDRAM and one SO-DIMM slot
    ● Enchanced TTL, RS-232, RS-422/485 and USB 2.0 interfaces for extened connectivities
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUOn-board AMD Geode™ LX600 processor (366 MHz), 128KB L2 cache
      ChipsetAMD Geode™ CS5536
      MemoryOne 200-pin 266/200 MHz DDR SDRAM SO-DIMMs On-board 128MB DDR 266/200 MHz memory
      Memory Max.512MB
      Physical Characteristics
      Net Weight250g
      Storage
      StorageDescription: 1 X FDD, 1 x IDE
      2 x SATA :RAID 0/1 supported on IOWA-LX-600S-R10
      1 x CF Type II Card
      I/O Interface
      Display Output1 x VGA :up to 1920x1440
      EthernetDescription: 10/100Mbps Realtek RTL8100C Ethernet controller
      AudioDescription: Realtek ALC203 with AC’97 codec
      1 x Front Audio
      I/O Interface1 x External RS-232
      2 x Internal RS-232/422/485 :2x7 pin, p=2.54
      4 x Internal USB 2.0 :2x4 pin , p=2.54
      1 x PS/2
      1 x LPT :2x13 pin
      Expansion1 x ISA Slot :supported via golden finger
      Power
      Power Consumption5V@1.51A, 5VSb@0.09A
      (On-board AMD Geode™ LX 600 CPU 366 MHz with 128MB 200 MHz onboard DDR memory and 512MB 333 MHz DDR memory)
      Power Supply5V/12V, Support AT/ATX mode
      Environment
      Operating Temperature-10°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      IOWA-LX-600S-R10Half-size pure ISA CPU card with on-board AMD Geode™ LX 600 processor at FSB 366MHz, 128KB L2 cache, 128MB memory on board include VGA, LAN, USB2.0, SATA, CF, COM, LPT and Audio, RoHS
      IOWA-LX-600-R10Half-size pure ISA CPU card with on-board AMD Geode™ LX 600 processor at FSB 366MHz, 128KB L2 cache, 128MB memory on board include VGA, LAN, USB2.0, CF, COM, LPT and Audio, RoHS
    • Package Contents

      • 1 x IOWA-LX-600 single board computer

      • 1 x Audio cable

      • 1 x IDE flat cable

      • 1 x KB/MS Y cable

      • 1 x USB cable

      • 1 x Mini jumper pack

      • 1 x QIG
