IMBA-H112

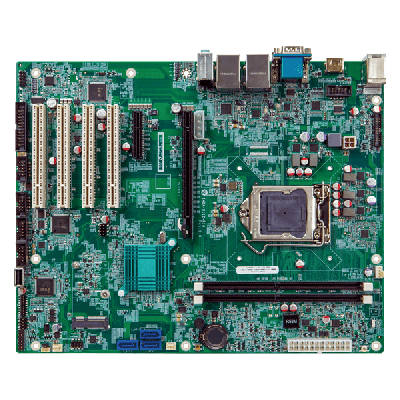

ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

  • Overview

    1. LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    2. Dual-channel DDR4 2133MHz
    3. Support dual displays with VGA/HDMI/iDP
    4. Support USB 3.2 Gen 1 (5Gb/s) and SATA 6Gb/s
  • Features

    IEI_New_ATX_Motherboard_IMBA_H112
    IEI_New_ATX_Motherboard_IMBA_H112

    PCIe and PCI Slots for Multiple Expansion Support






    Dimensions





    IMBA_Dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
      ChipsetIntel® H110
      MemoryTwo 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs
      Memory Max.64GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)243.8 X 304.8
      Net Weight700g
      Storage
      Storage1 x SATA :support Hot plug
      I/O Interface
      Display Output1 x VGA :up to 1920x1080@60Hz
      1 x HDMI :up to 4096x2160@24Hz
      1 x iDP :for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I219V PHY;
      LAN2: Intel® I211 PCIe controller;
      AudioDescription: Realtek ALC662 HD Audio Codec support 5.1 Channel
      1 x Line in
      1 x Line out
      1 x Mic
      1 x Front Audio :2x5-pin pin header
      I/O Interface1 x External RS-232
      4 x Internal RS-232 :2x5 pin, P=2.54
      1 x Internal RS-232/422/485 :2x5 pin, P=2.54
      2 x External USB 2.0
      4 x External USB 3.2 Gen1x1
      3 x Internal USB 2.0 :1 X type A, 2 X 2x4 pin, P=2.54
      1 x LPT :2x13 pin, P=2.54
      Expansion1 x PCIe x16 :Gen3
      1 x PCIe x4
      4 x PCI Slot
      1 x PCIe mini Card Slot :Full-size (support mSATA)
      Power
      Power Consumption3.3V@1.53A, 5V@2.95A, 12V@8.38A, 5VSB@3.2A (4.0 GHz Intel® Core™ i7-6700K CPU with two 8 GB 2133 MHz DDR4 memory)
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-20°C~70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      IMBA-H112-ECO-R10ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio, ECO packing and RoHS
      IMBA-H112-R10ATX Motherboard supports 14nm LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual®Intel GbE LAN, USB 3.1, SATA 6Gb/s, HD Audio and RoHS
    • Package Contents

      • 1 x IMBA-H112 single board computer

      • 1 x I/O shielding

      • 2 x SATA cable

      • 1 x QIG
