Desktop Network Appliance with Intel Atom C3000 processor up to 16 CPU cores support up to 6 x 1 GbE, 2 x 10 GbE & 2 x M.2 slots, 1 x PCIe Mini, 1 x eMMC 32GB

  • Overview

    ● Intel® Atom® C3558/3758 processor
    ● Support 6 x 1 GbE and 2 x 10 GbE SFP+ via X553 integrated in C3558/C3758
    ● DDR4 2133MHz ECC (by CPU) or non-ECC UDIMM/R-DIMM Up to 128GB
    ● 1 x M.2 A key (USB 2.0, PCIe x1), 1 x miniPCIe (USB 2.0, PCIe x1) with SIM card slot
    ● 1 x M.2 M key for PCIe 3.0 x4 nVME, 1 x eMMC 32GB
    ● Support open source software, such as pfSense® and OPNsense®.
  • Features


    The Puzzle-IN003B is a desktop network device that easily places in space limited area. It comes with Intel® Atom® Processor C3000 series System On Chip (4 core to 16 core and up to 2.2Ghz ) which supports up to 128GB Dual-channels DDR4 2400 MHz ECC (UDIMM, or RDIMM), 32GB Embedded Multi Media Card (eMMC), and have high speed network data transmission of 2 x 10Gb integrated Ethernet and 6 x 1Gb RJ-45 LAN ports. In order to speed up the network solutions, it also offers Intel® QuickAssist Technology (Intel® QAT up to 20Gbps) to accelerate and compress cryptographic workloads.

    Integrated Hardware acceleration

    Intel® QuickAssist Technology (Intel® QAT up to 20Gbps) to accelerate and compress cryptographic workloads.

    High-Density, Low-Power Designs

    Performance improvements over previous generations with an integrated/high-density design and low TDP.

    Multi-Core Scalability

    Multiple product configuration options from 4–16 processing cores to scale one design across many use cases.

    High-Speed I/O Configurability

    Faster transmission of large data files with two10Gb Ethernet and configurable I/O lanes using PCIe Gen 3, SATA and USB 3.0.

    Integrated Intel® QuickAssist Technology

    • In the 5G network, security is an indispensable requirement. The base station must use air interface security to connect to the user equipment (UE), and an IPsec connection to connect to the core network. The base station must support high-performance crypto algorithms like AES at the IP level and ZUC/Kasumi/Snow3G at the PDCP level.
    • To support these requirements the Intel Atom® C3000 processor series integrates Intel® QuickAssist Technology providing up to 20 Gbps of crypto performance, ensuring secure data transfer while reserving valuable processor cycles for other tasks.

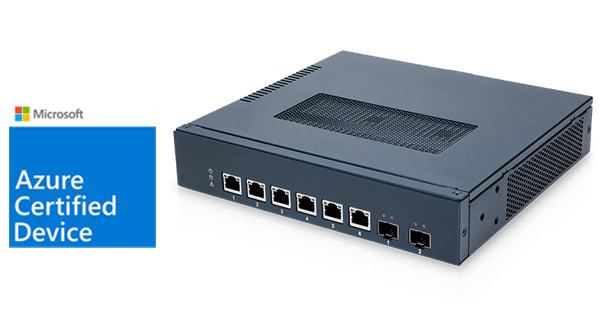

    System appearance


  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form FactorDesktop
      CPUIntel Atom® processor C3758, 8-core 16M cache, up to 2.20 GHz
      Intel Atom® processor C3558, 4-core 8M cache, up to 2.20 GHz
      ChipsetIntegrated in CPU
      Memory4 x DDR4 2133MHz ECC (By CPU) or non-ECC UDIMM, Support RDIMM
      Memory Max.UDIMM up to 64GB
      RDIMM up to 128GB
      Cooling method / System FanTwo system fans (PUZZLE-IN003B-C0 sku)
      Fanless (PUZZLE-IN003B-C1 sku)
      Physical Characteristics
      Dimensions (LxWxH) (mm)206 x 225 x 44.2
      Net Weight2 kg
      Storage1 x SATA SATA DOM + 1 x SATA power 5V
      1 x eMMC 32GB
      I/O Interface
      Ethernet2 x SFP+ 10 GbE (Integrated in CPU)
      6 x LAN GbE RJ-45 (NIC: Intel I211-AT, GbE PHY: Marvell 88E1512)
      I/O Interface1 x External RS-232 Console
      1 x External USB 2.0
      1 x External USB 3.2 Gen1x1
      Expansion1 x PCIe mini Card Slot (PCIe 3.0, USB 2.0) with SIM slot
      2 x M.2(NGFF) :(as below)
      1 X M.2 A key (PCIe 3.0& USB 2.0),
      1 X M.2 M key 2260/2280 Support PCIe 3.0 x4 nVME
      Wi-Fi2 for Wi-Fi/2 for WWAN
      Other Features
      TPM1 x TPM 2.0 pin header
      Input1 x DC jack, 12 V DC-in, 60W
      Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature-20°C ~ 75°C (-4°F ~ 167°F)
      HumidityRelative humidity: 5% ~ 90% non-condensing
      Safety & EMCCE / FCC
      OS Support
      OS SupportLinux Ubuntu 18.04.04
      CentOS 7/ Red Hat/Fedora EPEL
      Microsoft Windows 10
    • Ordering Info.

      Item No. Description
      PUZZLE-IN003B-C1/8G-R10 Desktop Network Appliance with Intel® ATOM® C3558 Processor , 6 x 1GbE, 2 x 10 GbE, 8GB DDR4, eMMC 32GB & 2x M.2 slot
      PUZZLE-IN003B-C0/8G-R10 Desktop Network Appliance with Intel® ATOM®  C3758 Processor , 6 x 1GbE, 2  x 10 GbE,8GB DDR4, eMMC 32GB & 2x M.2 slot
    • Package Contents

      • .1 x Power cord

      • .1 x Power adapter

      • .2 x Rack mounting ears

      • .6 x Screws for rack mounting ears

      • .USB to console cable (Option)

      • .RS-232 to console cable (Option)
