WAFER-ULT5

3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS

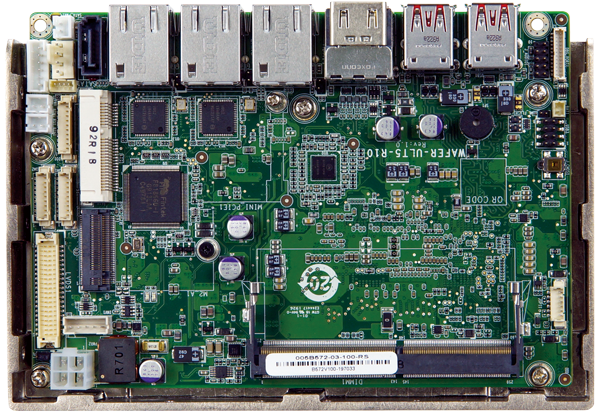

WAFER-ULT5_embedded_computer_IO
  • WAFER-ULT5_embedded_computer_IO
» 3.5” SBC supports Intel® 8th generation Whiskey Lake processor with DDR4 SO-DIMMs
» Triple display with dual HDMI, LVDS selection
» M.2 A Key, PCIe Mini slot with mSATA spport
» COM, USB 3.1 Gen2, SATA 6Gb/s support
» Support temperature operation: -20°C ~ 60°C

Hardware Spec.

System
CPU 8th generation Intel® mobile ULT Processor
Intel® Core™ i7-8665UE 1.7 GHz (up to 4.4GHz, Quad-core, 8MB cache, TDP=15W)
Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W)
Intel® Core™ i3-8145UE 2.2 GHz (up to 3.9GHz, Dual-core, 4MB cache, TDP=15W)
Intel® Celeron® processor 4305UE (up to 2.0GHz, Dual-core, 2MB cache, TDP=15W)
Intel® Celeron® processor 4205U (up to 1.8GHz, Dual-core, 2MB cache, TDP=15W)
Memory 1 x DDR4 2400MHz SO-DIMM
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 115 X 165
Net Weight 350g
Storage
Storage 1 x SATA :with 5V SATA power connector
I/O Interface
Display Output 2 x HDMI :1.4 (up to 4096x2160@30Hz)
1 x LVDS :18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Ethernet 3 x LAN :2 x Intel I211AT (colay with I210);
1 x PCIe GbE LAN Intel i219 Controller;
Audio 1 x HD Audio :2x5 pin, support 7.1 channel HD audio by AC-KIT-892HD-R10
I/O Interface 1 x Internal RS-232 :1x9 pin, P=1.25
1 x Internal RS-232/422/485 :1x9 pin, P=1.25 (Support Auto Flow Control over RS-485)
4 x External USB 3.2 Gen1x1
2 x Internal USB 2.0 :2x4 pin, P=2.0
Expansion 1 x PCIe mini Card Slot :Full-size (w/ SATA signal, support mSATA)
1 x M.2(NGFF) :with A Key 2230
Power
Power Supply 12V DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~95%, non-condensing

Ordering Information

WAFER-ULT5-i7-R10 3.5" SBC supports Intel® 14nm 8th Gen (ULT) Core™ i7-8665UE (15W) on-board CPU with DDR4 SO-DIMM , triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA , SATA 6Gb/s, dual COM, support Audio and RoHS
WAFER-ULT5-i5-R10 3.5" SBC supports Intel® 14nm 8th Gen (ULT) Core™ i5-8365UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
WAFER-ULT5-i3-R10 3.5" SBC supports Intel® 14nm 8th Gen (ULT) Core™ i3-8145UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
WAFER-ULT5-CE-R10 3.5" SBC supports Intel® 14nm 8th Gen (ULT) Celeron™4205U (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
WAFER-ULT5-C-R10 3.5" SBC supports Intel® 14nm 8th Gen (ULT) Celeron™4305UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
