RACK-500AI-C246

5U AI System with Intel® Xeon® E-2176G CPU (3.70 GHz, Hexa Core, TDP 80W) with Intel® C246, pre-installed 16GB ECC DDR4 memory, HDMI™, Dual Intel® PCIe GbE, USB 3.2, iAMT, w/ 1 PCIe x16/x4 Slot BP, w/ FSP350, RoHS

End of Life

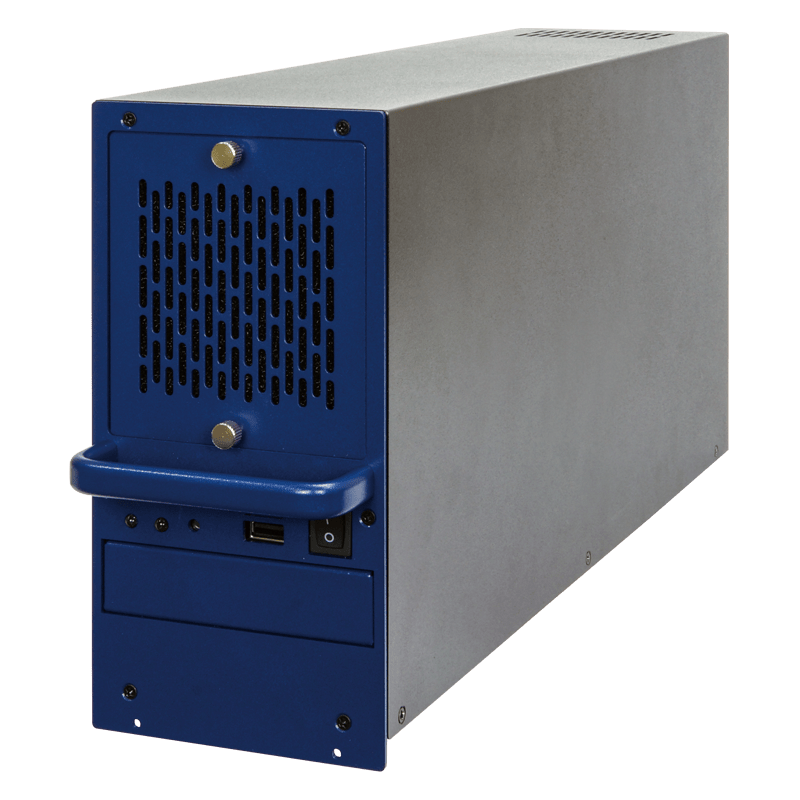

RACK-500AI-C246 AI embedded box pc
RACK-500AI-C246 AI embedded box pc
RACK-500AI-C246 AI embedded box pc
  • RACK-500AI-C246 AI embedded box pc
  • RACK-500AI-C246 AI embedded box pc
  • RACK-500AI-C246 AI embedded box pc

End of Life Notice

* Effective Date: 2023/06/06

» Intel® Coffee Lake C246 chipset with Intel® Xeon® E-2176G CPU (3.70 GHz, Hexa Core, TDP 80W)
» 1 x Front-accessible 3.5” and 1 x 3.5” HDD drive capacity
» Integrated one PCIe x16 and one PCIe x4 Gen3 expansion slot(support maximum length 338mm PCIe add-on cards)
» Great flexibility hardware expansion

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel® Xeon® E-2176G CPU (3.70 GHz, Hexa Core, TDP 80W)
  • Chipset:
    Intel® C246
  • System Memory:
    Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC (2 x 8G Pre-installed)
  • Power:
    ATX POWER (350W PSU)
  • Reliability:
    Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis
    Operating Vibration: MIL-STD-810G 514.6C-1
    Safety/EMC: CE/FCC
I/O Interface
I/O Ports
  • I/O Interface
    1 x HDMI™ (up to 4096 x 2304@30Hz)
    2 x USB 3.2 Gen 1 (5Gb/s)
    2 x GbE LAN (Intel® I219LM and I211-AT)
    2 x USB 2.0
  • Internal I/O Interface
    1 x USB 2.0 (Type A 180°)
    1 x KB/MS (1x6 pin)
    1 x RS-422/485 (1x4 pin, P=2.0)
    2 x USB 3.2 Gen 1 (5Gb/s) (2x10 pin)
    3 x RS-232 (2x5 pin, P=2.54)
    6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
    6 x USB 2.0 (2x4 pin, P=2.54)
Expansion Slots
Expansion Slots 1 x PCIe *16 slot
1 x PCIe *4 slot
1 x 2280 M key (PCIe x4)
System
Cooling method / System Fan System fan
Drive Bays 1x 3.5” 6 Gb/s SATA removable drive Bay (Hot swap)
Indicator&Buttons
Buttons 1 x Power Switch
1 x Reset Button
Indicators HDD & Power
Physical Characteristics
Construction Heavy Duty Metal
Color
Color Navy Blue & Black
Dimensions
Dimensions 440.2 mm x 110.6 mm x 221.3 mm(DxWxH)
Weight
Weight 8 kg/11 kg
Environment
Operating Temperature -20°C~+50°C
Humidity 10% ~ 95%, non-condensing
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

RACK-500AI-C246-XE/16G/35-R10 5U AI System with Intel® Xeon® E-2176G CPU (3.70 GHz, Hexa Core, TDP 80W) with Intel® C246, pre-installed 16GB ECC DDR4 memory, HDMI™, Dual Intel® PCIe GbE, USB 3.1, iAMT, w/ 1 PCIe x16/x4 Slot BP, w/ FSP350, RoHS
RACK-500AI-C246-35-R10 5U AI System with Intel® C246, HDMI™, Dual Intel® PCIe GbE, USB 3.1, iAMT, w/ 1 PCIe x16/x4 Slot BP, w/ FSP350, RoHS

Package Contents

Package Content

  • 1 x RACK-500AI-C246 AI System

  • 1 x Chassis Screw
