Mustang-M2BM

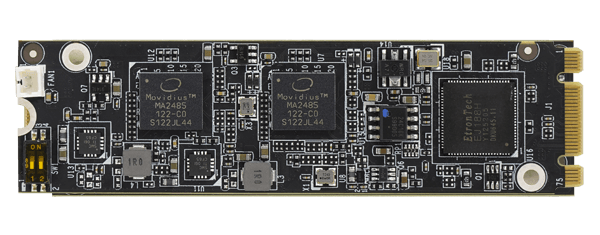

Deep learning inference accelerating M.2 BM key card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22 mm x 80 mm, RoHS

Mustang-M2BM-MX2-VPU-accelerator-card
Mustang-M2BM-MX2-VPU-accelerator-card
Mustang-M2BM-MX2-VPU-accelerator-card
  • Mustang-M2BM-MX2-VPU-accelerator-card
  • Mustang-M2BM-MX2-VPU-accelerator-card
  • Mustang-M2BM-MX2-VPU-accelerator-card
» M.2 BM key form factor (22 x 80 mm)
» 2 x Intel® Movidius™ Myriad™ X VPU MA2485
» Power efficiency, approximate 7.5W
» Operating Temperature -20°C~60°C
» Powered by Intel's OpenVINO™ toolkit

Hardware Spec.

System
Chipset 2 x Intel® Movidius™ Myriad™ X MA2485 VPU
Cooling method / System Fan Active Heatsink
Physical Characteristics
Dimensions (LxWxH) (mm) 22 X 80
Power
Power Consumption Approximate 7W
Environment
Operating Temperature -20°C ~ 60°C
Humidity 5% ~ 90%
Card Slot Interface
M.2 BM Key

Ordering Information

Mustang-M2BM-MX2-R10 Deep learning inference accelerating M.2 BM key card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22mmx80mm, RoHS

Download Specs.
