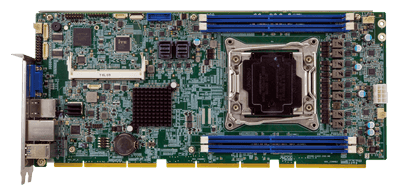

PEMUX-XEW1

Full-size PEMUX CPU Card supports LGA2066 Intel® Xeon® W CPU per, Intel® C422, DDR4 ECC RDIMM, IPMI VGA output, Aquantia 10GbE, USB 3.0, SATA 6Gb/s, M.2 and RoHS

PEMUX_CPU_card
PEMUX_CPU_card
  • PEMUX_CPU_card
  • PEMUX_CPU_card
» PEMUX full-size server / graphic grade solution
» LGA2066 Intel® Haswell processor supported
» Four 288-pin Dual-Channel DDR4 ECC RDIMM/LRDIMM supports up to 256GB
» Supports IPMI VGA display.
» Supports M.2 2280 SSD
» Intel® PCIe GbE Intel® i210-AT with NCSI support
» Aquantia AQC107 10 GbE NIC
» Supports RAID function via SATA 6Gb/s
» TPM V2.0 hardware security function supported by TPM module
Full-size CPU Card


Features

PEMUX CPU card IO
PEMUX CPU Card Support

PEMUX-DB-8S1-R10

PEMUX-DB-8S1-R10

PEMUX-DB-10S1-R10

PEMUX-DB-10S1-R10

Hardware Spec.

System
CPU LGA2066 socket supports Intel® Xeon W processor
Chipset Intel® C422
Memory Four 288-pin Dual-Channel DDR4 ECC RDIMM/LRDIMM
Memory Max. 256GB
Physical Characteristics
Dimensions (LxWxH) (mm) 338.58 X 150.5
Net Weight 700g
Storage
Storage 8 x SATA :2 x SAS 8643
1 x M.2(NGFF) :2280
I/O Interface
Display Output 1 x VGA
Ethernet 2 x LAN :LAN1: 1 GbE NIC: Intel® i210-AT with NCSI support
LAN2: 10 GbE NIC: Aquantia AQC107
Audio Description: 2 X 5 pin
I/O Interface 2 x Internal RS-232 :2x9 pin, p=2.0
2 x External USB 2.0
4 x External USB 3.2 Gen1x1
1 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
Expansion Description: 56-Lane PCIe signal via golden finger
Other Features
TPM 2x10 pin
Power
Power Supply 5V/12V, Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 40°C
Humidity 5% ~ 95%, non-condensing

Ordering Information

PEMUX-XEW1-R10 Full-size PEMUX CPU Card supports LGA-2066 Intel® Xeon® W processor, Intel® C422 chipset, DDR4 R-DIMM and LR-DIMM supported, IPMI VGA output, Intel® PCIe GbE, Aquantia 10GbE, USB3.0, USB2.0, SATA 6Gb/s(with mini SAS connector), and RoHS

Package Contents

Package Content
  • 1 x PEMUX-XEW1 single board computer

  • 1 x mini SAS to 4 SATA cable

  • 1 x QIG (Quick Installation Guide)
