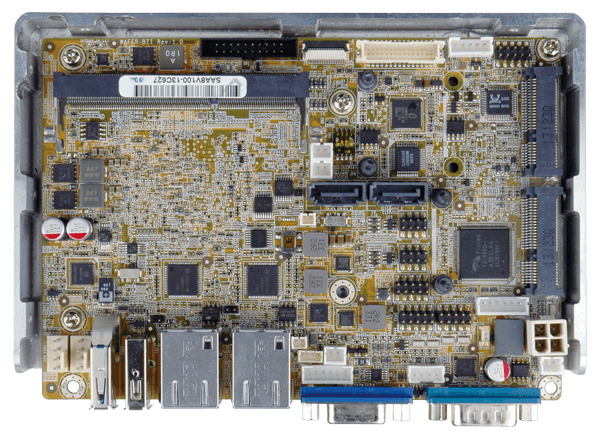

WAFER-BT

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC,

  • Overview

    ● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC
    ● Dual independent display support
    ● 1333/1066 MHz 1.35V DDR3L SDRAM up to 8 GB
    ● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
      Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
      Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
      MemoryOne 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM
      Memory Max.8 GB (J1900, N2930, E3845, E3827, E3826, E3825, E3815),4 GB (N2807)
      Physical Characteristics
      Dimensions (LxWxH) (mm)146 X 102
      Net Weight250
      Storage
      Storage2 x SATA :3Gb/s with 5V SATA power connector
      I/O Interface
      Display Output1 x VGA :up to 2560x1600@60Hz
      1 x LVDS :24-bit dual-channel LVDS connector (up to 1920x1200@60Hz)
      1 x iDP :for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
      Ethernet2 x LAN :1 x Intel® I210-AT PCIe controller with NCSI support, 1 x Intel® I211-AT PCIe controller
      AudioDescription: Realtek ALC662 HD codec
      1 x Front Audio :2x5 pin
      I/O Interface2 x Internal RS-232 :2x5 pin, P=2.0
      1 x Internal RS-422/485 :1x4 pin, P=2.0
      4 x Internal USB 2.0 :2x4 pin, P=2.0
      1 x PS/2 :1x6 pin
      Expansion2 x PCIe mini Card Slot :1 x Support mSATA colay with SATA port 2,1 x except for ECO sku
      Power
      Power Consumption12V@1.45A (Intel® Celeron® J1900 with one 8 GB 1333 MHz DDR3 memory)
      Power Supply12V only DC input,1 x internal power connector(2 x 2 pin),Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      WAFER-BT-J19001-ECO-R203.5" SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz (10W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio, ECO packing and RoHS
      WAFER-BT-J19001-R203.5" SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz (10W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
      WAFER-BT-N28071-R203.5" SBC supports Intel® 22nm Dual-Core Celeron™ N2807 1.58GHz (4.5W) on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
      WAFER-BT-N29301-R203.5" SBC supports Intel® 22nm Quad-Core Celeron™ N2920 1.86GHz (7.5W) on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
    • Package Contents

      • 1 x WAFER-BT single board computer

      • 1 x SATA with power cable kit

      • 1 x Audio cable

      • 1 x Power cable

      • 1 x QIG (Quick Installation Guide)
