» Intel®Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)
» Two GbE LAN ports
» Two RS-232/422/485
» Full-size PCIe Mini slot and M.2 A-key slot for expansion
Optional accessories:
» Power adapter: 63040-010036-210-RS
» Power cord: 32701-000501-100-RS

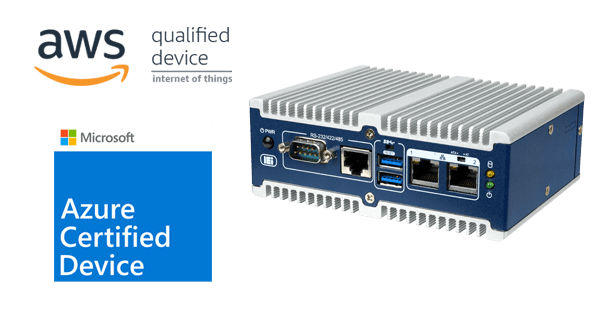

Ultra-compact Edge Computing System
The ITG-100-AL uses Intel® Atom™ X5-E3930 1.3GHz as its processor with max. 8GB memory. Space limitation is one of the constraints commonly seen in today’s industrial environment. Under tight restrictions, the ITG-100-AL not only provides palm-sized design to meet the space requirement, but also comes with adequate basic I/O ports and supports a wide range of operating temperature (-20~60℃), making it suitable for acting the role as a data collection gateway for various applications. In order to respond the demand of adding more functions to the system, the ITG-100-AL is equipped with a full-size PCIe Mini slot reserved for 3G/4G and a M.2 A-key slot reserved for Wi-Fi to provide function expansion with easy access. Additional 2.5” SATA HDD/SDD bay, knockout-hole layer with selectable I/O interface, or both of above-mentioned modularized options could be implemented into the ITG-100-AL to best fit users’ preferences and still remaining its small size.
High Expansion Capability with Modular Design
Additional block layers can be assembled to achieve I/O interface expansion and data storage requirement. With choices of adding a 2.5” SATA HDD/SSD bay, a knockout-hole layer with selectable I/O interface, or both of above-mentioned options, the ITG-100-AL could be modularized to what best fit users’ preferences and still remaining its compact size.
Ultra-compact Size
Space limitation is one of the constraints commonly seen in today’s industrial environment. Under tight restrictions, the ITG-100-AL not only provides palm-sized design to meet the space requirement, but also comes with adequate basic I/O interfaces for various applications.
Functionality Expansions
In order to respond the demand of adding more functions to the system, the ITG-100-AL is designed with a full-size PCIe Mini slot reserved for 3G/4G and a M.2 A-key slot reserved for Wi-Fi to provide function expansions with easy access.
Intelligent Data Collection Gateway
The followings are some of challenges we may face when deploying new IIoT technology on factory equipment.
- Collecting large amounts of data from sensors
- Computing and analyzing big data
- Delivering the computed result to other machines & devices
- Enhancing data security
IEI ITG-100-AL features Intel® Atom CPU have the capability to provide intelligent machinery and big data analysis. Its rich I/O interfaces and multiple expansions, allowing users to connect different devices for increasing productivity by realizing smart manufacturing. IEI also offer ITG-100AI which is combined with an AI accelerator card to implement as an AI inference system for object detection.
EV Charging Station Gateway
IEI ITG-100-AL, supports -20°C to 50°C operating temperatures to enable the connection of charge units and monitoring sensors in critical environments. Under tight restrictions, it not only provides palm-sized design to meet the space requirement, but also comes with adequate basic I/O interfaces. As an IoT gateway, the ITG-100 can collect, analyze data and transfer the data to the control center through wireless connection.
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| I/O Interface | |
| I/O Ports |
|
| Expansion Slots | |
| Expansion Slots |
M.2: 1 x M.2 2230 (A key, PCIe by 1, USB2.0) PCIe Mini: 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays |
1 x 2.5＂ SATA 6Gb/s HDD/SSD bay (ITG-100-AL-E1 & ITG-100-AL-E1/2GB support) |
| Indicator&Buttons | |
| Buttons |
1 x Power Button 1 x Reset Button 1 x AT/ATX Switch |
| Indicators |
1 x LED for HDD (Yellow) 1 x LED for Power (Green) |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Blue & Silver |
| Dimensions | |
| Dimensions |
ITG-100-AL-E1/S: 137 x 102.8 x 36.2 (WxDxH) (mm) ITG-100-AL-E1: 137 x 102.8 x 56.2 (WxDxH) (mm) |
| Weight | |
| Weight |
ITG-100-AL-E1/S: 0.67 kg/1.03 kg ITG-100-AL-E1: 0.86 kg/1.22 kg |
| Environment | |
| Operating Temperature | -20°C ~ 60°C with air flow (SSD) |
| Humidity | 10% ~ 95%, non-condensing |
| OS Support | |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
Ordering Information
| ITG-100-AL-E1/S-R10 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), VGA, M.2, COM, 12V DC and RoHS |
|---|---|
| ITG-100-AL-E1/2GB/S-R10 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 2GB DDR3L pre-installed memory, VGA, M.2, COM, 12V DC and RoHS |
| ITG-100-AL-E1/2GB-R10 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 2GB DDR3L pre-installed memory, VGA, M.2, COM, 12V DC, Flexible I/O Expansion and RoHS |
| ITG-100-AL-E1-R10 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), VGA, M.2, COM, 12V DC, Flexible I/O Expansion and RoHS |
Package Contents
| Package Content |
|
|---|
Marketing Material
