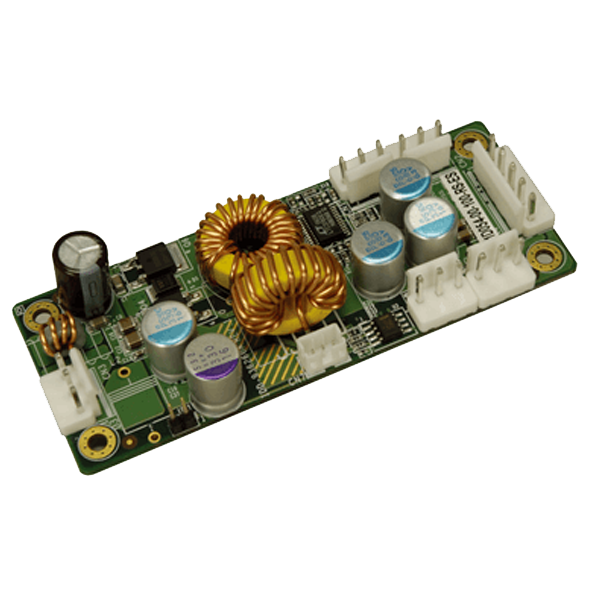

IDD-936260A

60 W DC/DC Converter Module

  • Overview

    ● Wide input range: 9-36 VDC
    ● AT or ATX mode on/off
    ● Up to 90% efficiency
    ● RoHS compliant
    ● Compact size
  • Specifications

    • Hardware Spec.

      Spec Item Description
      General
      Dimensions40 x 100
      Efficiency90%
      Operating temperature-20ºC ~ 70ºC
      Watt90W
      Input
      Voltage9 VDC to 36 VDC
      Output
      Voltage12 V@3 A, 5 V@10 A & 5VSB@0.5 A
    • Ordering Info.

      Item No. Description
      IDD-936260A-R11 60W DC/DC 9~36V input 12V/5V/5VSB output
