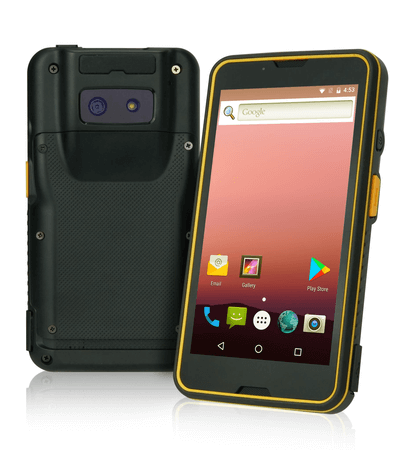

MODAT-550A

Mobile Data Collector

End of Life

MODAT-550A-PDA-mobile-device
MODAT-550A-PDA-mobile-device
  • MODAT-550A-PDA-mobile-device
  • MODAT-550A-PDA-mobile-device

End of Life Notice

* Effective Date: 2021/09/14

» 1.5m drop survival and IP 65 protection
» Octa-core 64-bit Cortex-A53 1.5 GHz processor
» 5.5＂ display PDA
» Optional GSM (850, 900, 1800, 1900)
WCDMA (Band 1, 2, 5, 8)
TDS-CDMA (Band 34, 39)
LTE FDD (Band 1, 2, 3, 4, 5, 7, 8, 20)
TDD (Band 38, 39, 40, 41b)
» Micro USB port and microSD card slot (max. 64 GB) for maximum connectivity
» Android 7.0 OS
» 1D/2D imager scan engine
» NFC (device to device communication, card reader).

Specifications

Hardware Spec.

Communication
Bluetooth 4.0 LE
GPS GPS/Glonass
modem GSM (850, 900, 1800, 1900)
WCDMA (Band 1, 2, 5, 8)
TDS-CDMA (Band 34, 39)
LTE FDD (Band 1, 2, 3, 4, 5, 7, 8, 20)
TDD (Band 38, 39, 40, 41b)
Wi-Fi 802.11a/b/g/n
Data Collection
Barcode 1D/2D imager scan engine
Camera 13-megapixel AF rear camera
Display
Brightness(cd/m2) 300
Max Resolution 1080x1920
Touch Screen 5-point capacitive
Viewing Angle 80/80/80/80 deg
Environment
Drop Survival 1.5m
Environmental Protection IP 65
Humidity 10% ~ 95%, non condensing
Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
I/O Interface
Audio 1 x 0.5W speaker
1 x Headset/Mic-in
USB 1x High-speed Micro USB 2.0 OTG
I/O Interface
I/O Interface 1 x Mic
1 x MiniSD Slot
1 x Power In
1 x Power switch
1 x SD Slot
1 x Speaker
1 x USB 2.0
Indicator&Buttons
LED Indicator Green/Red
Physical Characteristics
Dimensions (LxWxH) (mm) 160.9 mm x 85.4 mm x 28.85 mm
Net Weight Under 380g
Power
Battery 4000 mAh
Power adapter 5V/3A
System
CPU Octa-core 64-bit Cortex-A53 1.5 GHz processor
On-board Memory 16GB eMMC
2GB LPDDR3
Operating System Android 7.0
Storage microSD slot up tp 64GB

Ordering Information

MODAT-550A-OA53-R10-US 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, US reg, RoHS
MODAT-550A-OA53-R10-TW 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, TW reg, RoHS
MODAT-550A-OA53-R10-EU 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, EU reg, RoHS
MODAT-550A-OA53-R10-CN 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, CN reg, RoHS
MODAT-550A-OA53-ET-R10-US 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, US reg, RoHS
MODAT-550A-OA53-ET-R10-TW 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, TW reg, RoHS
MODAT-550A-OA53-ET-R10-EU 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, EU reg, RoHS
MODAT-550A-OA53-ET-R10-CN 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, CN reg, RoHS

Package Contents

Package Content

  • 1 x USB Cable

  • 1 x AC-DC Adapter

  • 1 x Hand Strap
