PM-BT

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS

» PC/104 form factor SBC supports 22nm Intel® Atom™ on-board SoC
» PC/104-Plus (ISA and PCI signal) function support
» 5V DC input solution
» Support 2 COM, PCIe Mini, USB and optional on-board SSD
» Dual display from VGA and LVDS
» Wide range temperature support from -40°C ~ 85°C (for E38xx series CPU)
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

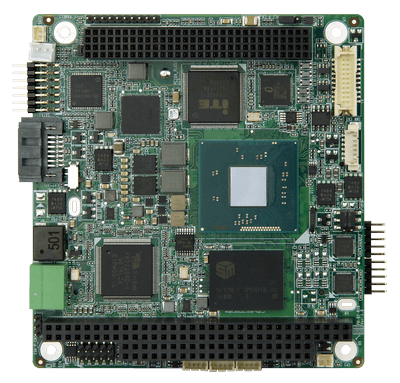

PM-BT single board computer banner
PM-BT_single-board-computer-features
PM-BT single board computer applications

Dimension

PM-BT single board computer dimension

Hardware Spec.

System
CPU Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
Memory One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM
Memory Max. 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)
Physical Characteristics
Dimensions (LxWxH) (mm) 96 X 90
Net Weight 120
Storage
Storage 1 x 2.5” SSD/HDD Bay On-board (optional, support by request)
I/O Interface
Display Output 1 x VGA :up to 2560x1600@60Hz
1 x LVDS :18/24-bit single-channel (2x10 pin)
Ethernet Description: 1 x Intel® I210
Power
Power Consumption 5V@1.70A (Intel® Celeron® J1900 CPU with 8GB memory )
Power Supply 5V DC input
12V for fan, LVDS and PCI-104 plus
» 5V for PCI-104 plus (1x3 pin, P=2.0)
» 12V for PCI-104 plus (1x3 pin, P=2.0)
3/5V jumper for PCI-104 plus
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature -20°C ~ 60°C (for J1900/N2930/N2807);
-40°C ~ 85°C (for E38xx);
Storage Temperature -40°C ~ 85°C
Humidity 5% ~ 95%, non-condensing
Compatible Model
Motherboard CE/FCC

Ordering Information

PM-BT-N28071-R10 PC/104-Plus Single Board Computer with Intel® Atom™ N2807 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
PM-BT-J19001-R10 PC/104-Plus Single Board Computer with Intel® Atom™ J1900 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS

Package Contents

Package Content
  • 1 x PM-BT single board computer

  • 1 x SATA cable kit


Download Specs.
