Overview● 8” sunlight readable TFT LCD with projected capacitive touchscreen● Optional LTE module● Built-in GPS receiver● Built-in OBD-II/J1939● OS: Android 7.1

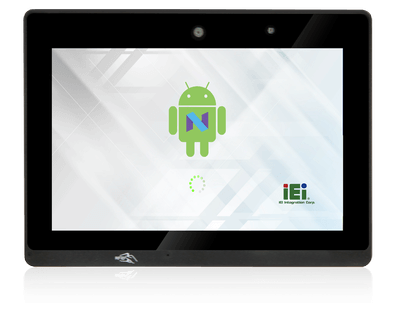

IEI announces the release of the AFOKAR-08A-RK39 in-vehicle panel PC series. The AFOKAR-08A-RK39 adopts Linux and Android system with a powerful Rockchip RK3399 for transportation solutions in AI. With the sunlight readable TFT LCD, it is able to optimize the visibility in any critical environment. It is built-in GPS, OBD-II and has high communication which supports 4G LTE, GPS, Bluetooth, NFC and WLAN 802.11 a/b/g/n/ac. With the AFOKAR-08A-RK39, your vehicle can be easily integrated with ADAS (Advanced Driver Assistance System) to offer fatigue driving detection by front camera, VSA (Front Vehicle Start Alarm), FCW (Front Collision Warning) and LDW (Lane Departure Warning) to enhance your vehicle safety.
RockChip RK3399 Processor
● CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
● Mali-T864 GPU (45% more than Mali-T628)
● 4K UHD H265/H264/VP9
● Dual USB Type-C and USB 2.0
● HDMI 2.0a with HDCP 2.2.
Powerful, but low energy
Normally, the CPU will run A53 for low power consumption. If the application needs more computing power, A72 CPU will increase performance by 50%.
+45% performance than Mali-T628
RK3399 has more powerful GPU and supports 4K resolution video decode.
IEI products with RK3399 family CPU support dual OS with full API/SDK, making it easy to develop your own application on Android or Linux environment.
• Android 7.1 (Android 8.1 coming soon)
• Linux Ubuntu 16.04
Applications for RK3399
RK3399 has features of high performance, high expansion, all-round application and it will empower AI and assist the layout of industry products.
Spec Item Description Form factor SBC Form Factor CPU: Rockchip RK3399
(Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
System Memory:On-board 2GB LPDDR3-1866
I/O Interface I/O Ports 20-pin Connector
** 1 x OBD-II/J1939
** 1 x USB 2.0
** 1 x Audio out
** 1 x RS-232
** 1 x RS-485
** 4-bit digital I/O with isolation (2-bit input, 2-bit output)
1 x HDMI output
1 x GPS SMA connector
1 x WWAN SMA connector
1 x SIM card slot
1 x USB3.0 Type A
Expansion Slots Expansion Slots 1 x Full-size PCIe Mini (reserved for WWAN) System Cooling method / System Fan Fanless Drive Bays On board 16GB eMMC NAND FLASH
1 x Micro SD Slot
Indicator&Buttons Buttons 1 x Power button Indicators 1 x Power
1 x BT
1 x Wi-Fi
1 x WWAN
Color Color Black C + Silver Dimensions Dimensions 210 x 154 x 33.9 Weight Weight 0.77 kg Environment Operating Temperature -10°C ~ 50°C with air flow Humidity 10% ~ 95%, non-condensing
Item No. Description AFOKAR-08A-RK39-R10-CN 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, CN reg, ROHS AFOKAR-08A-RK39-R10-EU 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, EU reg, ROHS AFOKAR-08A-RK39-R10-TW 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, TW reg, ROHS AFOKAR-08A-RK39-R10-US 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, US reg, ROHS
1 x AFOKAR Device
