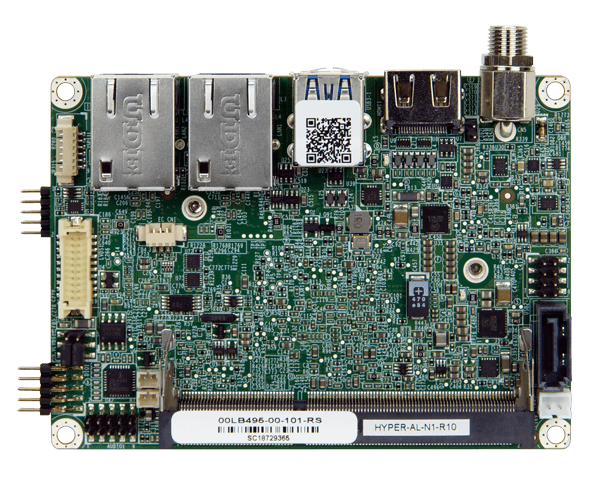

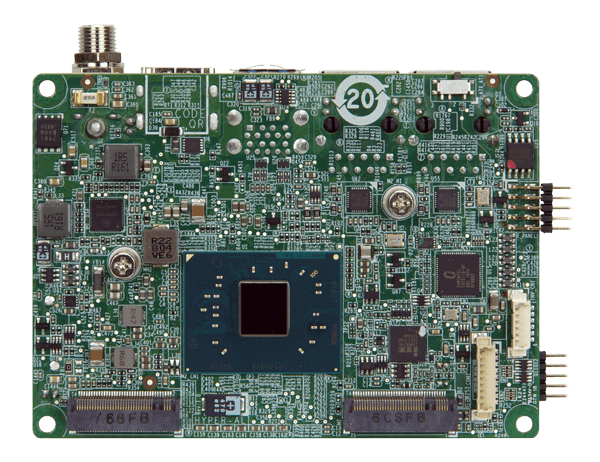

HYPER-AL

PICO-ITX SBC supports Intel® 14nm Apollo Lake on-board SoC with DDR3L, HDMI, LVDS, dual GbE, USB 3.0, SATA, M.2 and RoHS

  • Overview

    ● PICO-ITX SBC supports Intel® 14nm Apollo Lake on-board SoC supports Intel® 14nm Apollo Lake on-board SoC
    ● Dual GbE LAN support
    ● Flexible expansion with M.2 A key 2230 and M.2 B key 2242 support
    ● HDMI and internal LVDS for independent display
    ● 12V only single voltage design for AT/ATX power by DC power jack
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
      MemoryOne 204-pin 1866/1600MHz single-channel DDR3L SDRAM unbuffered SO-DIMM
      Memory Max.8GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)100 X 72
      Net Weight250g
      Storage
      Storage1 x SATA :6Gb/s with 5V power connector
      I/O Interface
      Display Output1 x HDMI
      1 x LVDS :2x10 pin, single channel, 24bit
      Ethernet2 x LAN :LAN1: Realtek RTL8111H controller
      LAN2: Realtek RTL8111H controller
      Audio1 x HD Audio :2x5 pin, support 7.1 channel HD audiou by AC-KIT-892HD-R10)
      I/O Interface1 x Internal RS-232 :1x9 pin, p=1.25
      2 x External USB 3.2 Gen1x1 :on rear IO
      2 x Internal USB 2.0 :2x4 pin, p=2.0
      1 x DIO :8-bit DIO (2x5 pin, P=2.0)
      Expansion2 x M.2(NGFF) :1 X 2230 A key(PCIe,USB),1 X2242 B Key(USB.SATA)
      Power
      Power Consumption12V@2.36A (Intel® Celeron® N3350 with 8GB 1600MHz DDR3L memory)
      Power Supply12V DC input only (DC jack)
      Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      HYPER-AL-N1-R10PICO-ITX SBC supports Intel® 14nm dual-core Celeron® N3350 2.4GHz on-board SoC with HDMI, LVDS, dual LAN, M.2, USB3.0, SATA 6GB/s, COM and RoHS
    • Package Contents

      • 1 x HYPER-AL single board computer(heat spreader by default)

      • 1 x COM port cable(32005-003500-200-RS)

      • 1 x SATA cable kit(32801-000201-300-RS)

      • 1 x QIG (Quick Installation Guide)
