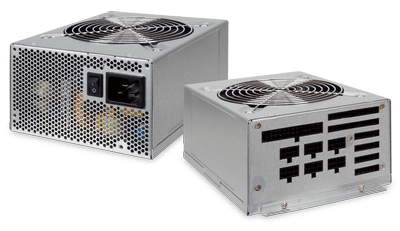

ACE-A210A

1000W PS/2 ATX Power Supply with ErP

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions190 x 150 x 86
      General
      Efficiency87%
      MTBF100000
      Operating temperature0℃ ~ 50℃
      Output Connector1 x 20+4-pin ATX,
      1 x 4-pin 12V CPU,
      6 x 6+2-pin PCIE,
      2 x HDD/CDROM,
      1 x SATA
      Storage temperature-20℃ ~ 80℃
      Watt1000W
      Input
      Voltage100~240 VAC
      Frequency50~60Hz
      Input Current14A(RMS) @115VAC,
      7A (RMS)@230VAC
      Inrush Current50A max. for 115VAC
      100A max. for 230VAC
      Output
      Voltage+3.3V/30A,
      +5V/30A,
      +12V/83A,
      -12V/0.8A,
      +5Vsb/4A
      Over Voltage Protection5V:5.75V~ 7.00V
      12V:13.50V ~ 15.50V
      3.3V:3.76V ~ 4.8 V
      Short Circuit Protection3.3V , 5V , 12V
      or 5Vsb shutdown and auto restart
    • Ordering Info.

      Item No. Description
      ACE-A210A-R101000W AC-DC PS/2 ATX Power Supply with ErP, meets 80 plus(Gold)
