» Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)
» DDR3L 1.35V SO-DIMM supported
» Serial, CAN bus and digital I/O interface
Empower Your IoT Business

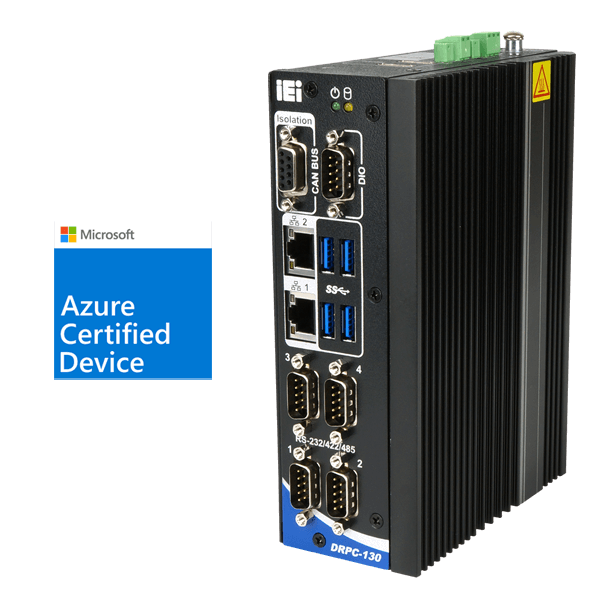

The DRPC-130-AL is an industrial IoT gateway equipped with Intel® Atom™ x5-E3930 Processor. To achieve the purpose of high efficiency in data collection, it is designed with rich I/O ports, including four USB 3.0, two 1 GbE LAN ports, four RS-232/422/485 COM ports, and two HDMI™ ports. It also provides isolated CAN bus for better communication between multi-devices in the vehicle market. This compact-size gateway can also integrate with two PCIe Mini slots and one 2.5" HDD for higher expandable capability. The DRPC-130-AL is suitable for applications like warehouse management, smart agriculture, factory automation and traffic management.
Wide Operating Temperature
To ensure high reliability in harsh environment, the DRPC-130-AL is able to endure -20°C to 60°C operating temperature, not only with no system crash, but also delivering constant performance with CPU running steadily above its base frequency.
Integrated with Easily-accessible I/O
The DRPC-130-AL is a well-developed communication gateway integrated with multiple I/O to meet any requirements for data collection in IoT applications.
Automatic Gate Controller
The automatic ticket gate is one of basic needs of metro and train stations. During peak hours, automated gates must serve as stable, easily maintained system to manage and maintain a steady flow in the volume of commuters. Featuring Intel® Atom™ CPU, compact size with slim design and rich I/O ports, the DRPC-130-AL is ideal to be used as an automatic gate controller.
ATM
ATMs available nowadays facilitate services like cash withdrawal, transaction details, account balance, and card-to-card money transfer. The DRPC-130-AL can be installed in ATM machines to connect with card readers, displays, and receipt printers for collecting and transferring data to the control center.
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| 輸出/入介面 | |
|---|---|
| I/O Ports |
|
| 擴充槽 | |
|---|---|
| 擴充槽 | PCIe Mini: 1 x Half-size PCIe Mini slot 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) |
| 系統 | |
|---|---|
| 冷卻方式/系統風扇 | Fanless |
| Drive Bays | 1 x 2.5' SATA 6Gb/s HDD/SSD bay |
| 指示燈與按鈕 | |
|---|---|
| 按鈕 | 1 x Power Button 1 x Reset Button 1 x AT/ATX Switch |
| 指示燈 | 1 x LED for HDD (Yellow) 1 x LED for Power (Green) |
| Physical Characteristics | |
|---|---|
| Construction | Extruded aluminum alloy |
| Color | |
|---|---|
| Color | Black |
| Dimensions | |
|---|---|
| Dimensions | 58.75 x 130 x 174 |
| Weight | |
|---|---|
| Weight | 1.4Kg/2.5Kg |
| Environment | |
|---|---|
| Operating Temperature | -20°C ~ 60°C with air flow (SSD) |
| Humidity | 10% ~ 95%, non-condensing |
Ordering Information
| DRPC-130-AL-E1/4GB-R11 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 4GB DDR3L pre-installed memory, two HDMI, 8-bit DIO, CAN-Bus, COM, 12~24V DC and RoHS |
| DRPC-130-AL-E1-R11 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), two HDMI, 8-bit DIO, CAN-Bus, COM, 12~24V DC and RoHS |
Package Contents
|
