IMBA-Q370

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1 Gen 2 (10Gb/s), SATA 6Gb/s, HD Audio and RoHS

  • Overview

    ● LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
    ● Dual-channel DDR4 2666MHz
    ● Support VGA, HDMI & DP++
    ● Support M.2 A key for WLAN expansion, M key for storage
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Features

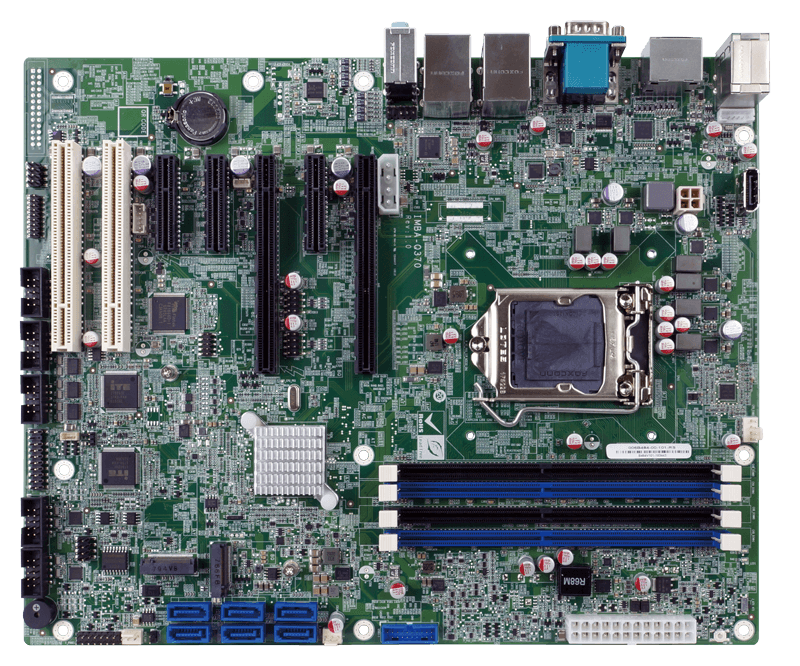

    IMBA-Q370-ATX-motherboard
    IMBA-Q370-ATX-industrial-motherboard-features

    Dimensions

    IMBA-Q370-ATX-industrial-motherboard-dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
      ChipsetIntel® Q370
      MemoryFour 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs
      Memory Max.64GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)244 X 305
      Net Weight700g
      Storage
      Storage6 x SATA :6Gb/s(RAID 0/1/5/10 supported)
      I/O Interface
      Display Output1 x VGA :up to 1920x1080@60Hz
      1 x HDMI :up to 4096x2304@30Hz
      2 x Display Port :1 X DP++ (up to 4096x2304@60Hz);
      1 X internal Displayport (up to 4096x2304@60Hz);
      Ethernet2 x LAN :LAN1 : Intel® I219LM PCIe controller with AMT 11.0 support
      LAN2: Intel® I211AT PCIe controller
      AudioDescription: Realtek ALC662 HD codec
      1 x Line in :on rear IO
      1 x Line out :on rear IO
      1 x Mic :on rear IO
      1 x Front Audio :2x5 pin
      I/O Interface1 x External RS-232
      3 x Internal RS-232 :25 in , p=2.54
      2 x Internal RS-232/422/485 :2x5 pin, p=2.54
      2 x External USB 2.0
      4 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 :2x4 pin, p=2.54
      2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
      2 x PS/2 :1 X 1x6 pin
      1 x DIO :8-bit digital I/O (2x5 pin)
      Expansion2 x PCIe x8
      3 x PCIe x4
      2 x PCI Slot
      2 x M.2(NGFF) :1 x A key(2230/3030), 1 X M key(PCLe, USB, SATA)
      Other Features
      TPM2x10 pin
      Power
      Power Consumption3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSV@3.4A (Intel® Core® i7-8700K up to 4.60 GHz CPU with 32GB 2600MHz DDR4 memory)
      Power SupplySupport AT/ATX mode
      ErP/EuP Compliant
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      IMBA-Q370-R10 ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1, SATA 6Gb/s, HD Audio and RoHS
