ICE-BDE-T7

COM Express Basic Size Type 7 Module Support, Intel® Broadwell-DE Processor D-1500

  • Overview

    ● COM Express basic size Type 7 module
    ● Intel® Xeon® D and Pentium® D SoC (up to 16 cores)
    ● Up to 32GB dual channel DDR4 at 1866/2133/2400MHz ECC (dependent on SoC SKU)
    ● Two 10G Ethernet and NC-SI support
    ● Up to 32 PCIe lanes (24 x Gen3, 8 x Gen2)
    ● GbE, two SATA 6Gb/s, four USB 3.0/2.0
  • Features

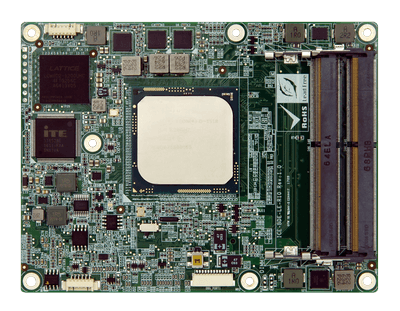

    ICE-BDE-T7-SBC-product-photo

    Dimension

    ICE-BDE-T7-single-board-computer-dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Xeon® D processor D-1548 (12MB Cache, 2.00GHz)
      Intel® Xeon® D processor D-1518 (6MB Cache, 2.20GHz)
      Intel® Xeon® D processor D-1508 (3MB Cache, 2.20GHz)
      MemoryTwo 260-pin 1600/2133 MHz Dual-Channel DDR4 SDRAM supported Support ECC
      Memory Max.32GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)125 X 95
      Net Weight300g
      Storage
      Storage2 x SATA :6Gb/s singal to base board
      I/O Interface
      EthernetDescription: Intel® I210
      2 x 10G KR Interfaces
      10G Sideband Signals
      (10G_INT 10G_PHY_MDC/MDIO 10G_PHY_SEL 10G_PHY_RST
      10G_LED_I2C 10G_SFP_I2C 10G_SDP)
      I/O Interface2 x Internal RS-232 :2-wire to base board
      4 x Internal USB 2.0 to base board
      4 x Internal USB 3.2 Gen1x1 :to base board (with 4 X USB 2.0)
      Expansion1 x PCIe x16 :Gen 3 (Bifurcatable to 2 x8, 1 x8 & 2 x4, or 4 x4)
      1 x PCIe x8 :Gen 3 (Bifurcatable to 1 x8 & 2 x4)
      8 x PCIe x1 :Gen2 signal to base board
      Other Features
      TPMon-Board SPI TPM 2.0
      Power
      Power Consumption12V@2.15A, 5VSB0.28A, 5V0.03A
      Power Supply12V: 12V±5%, 5VSB: 5V±5%, RTC Battery: 2.0-3.3V
      Environment
      Operating Temperature-20°C ~ 60°C with air flow
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      ICE-BDE-T7-1508-R10COM Express Basic size Type 7 Module support, Intel® Broadwell-DE Dual-core Pentium® Processor D1508(25W), Two ECC DDR4 SO-DIMM , GbE, 10G KR, NCSI, SATAIII, USB 3.0, PCIe Gen3, RoHS
      ICE-BDE-T7-1518-R10COM Express Basic size Type 7 Module support, Intel® Broadwell-DE Quad-Core Processor D-1518(35W), Two ECC DDR4 SO-DIMM , GbE, 10G KR, NCSI, SATAIII, USB 3.0, PCIe Gen3, RoHS
      ICE-BDE-T7-1548-R10COM Express Basic size Type 7 Module support, Intel® Broadwell-DE Eight-Core Processor D-1548(45W), Two ECC DDR4 SO-DIMM , GbE, 10G KR, NCSI, SATAIII, USB 3.0, PCIe Gen3, RoHS
    • Package Contents

      • 1 x ICE-BDE-T7 single board computer

      • 1 x Heatsink

      • 1 x QIG
