End of Life Notice
* Effective Date: 2023/10/23

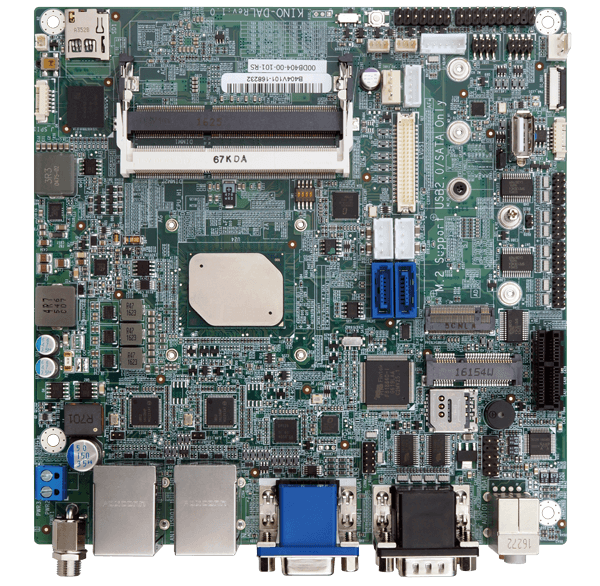

» Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC supports dual-channel DDR3L SO-DIMMs
» Triple independent display support
» Optional wide range 9V~30V DC input design
» Full size PCIe Mini slot with SIM sockets for 3G/LTE expansion
» COM, USB 3.0, SATA 6Gb/s, M.2, eMMC 5.0 and audio support
Hardware Spec.
| System | |
|---|---|
| CPU |
Intel® Atom® x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W) Intel® Atom® x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W) Intel® Atom® x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W) Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W) Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W) |
| Memory | Two 204-pin 1866/1600MHz Dual-channel DDR3L SO-DIMMs |
| Memory Max. | 8GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170 X 170 |
| Net Weight | 700g |
| Storage | |
| Storage | 2 x SATA :6Gb/s with 5V SATA power connector |
| 1 x SD/MicroSD card optional | |
| 1 x eMMC :5.0(optional, up to 32GB) | |
| I/O Interface | |
| Display Output | 1 x VGA :up to 1920x1200@60Hz |
| 1 x HDMI™ :up to 3840x2160@30Hz | |
| 1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz) | |
| Ethernet | 2 x LAN :PCIe GbE LAN Intel® i211 AT controller |
| Audio | Description: Realtek ALC662 HD codec |
| 1 x Line out :on rear IO | |
| 1 x Mic :on rear IO | |
| Front Audio :2x5 pin | |
| I/O Interface | 2 x External RS-232/422/485 |
| 4 x Internal RS-232 :2x5 pin, P=2.0 | |
| 5 x Internal USB 2.0 :1 x A type, 4 X 2x4 pin, p=2.0 | |
| 4 x Internal USB 3.2 Gen1x1 | |
| 1 x PS/2 :1x6 pin | |
| Expansion | 1 x PCIe x1 |
| 1 x PCIe mini Card Slot :Full/Half-size PCIe Mini slot | |
| 1 x M.2(NGFF) :B key(2242/2260/2280, USB 2.0 & colay SATA2) | |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Consumption | 12V@3.64A (Intel® Pentium® N4200 CPU with two 8GB 1600MHz DDR3L memory) |
| Power Supply |
12V only DC input as Default/ 9V~30V DC input (optional) 1 x Internal power connector (2x2 pin) 1 x External DC power Jackc (Ø5.5mm) Support AT/ATX mode |
| Environment | |
| Operating Temperature | -20°C ~ 70°C / -40°C ~ 85°C (KINO-DAL-ExW2) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| KINO-DAL-N1-R10 | Mini-ITX SBC supports Intel® 14nm dual-core Celeron® N3350 2.3GHz on-board SoC with HDMI™/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS |
|---|---|
| KINO-DAL-J2-R10 | Mini-ITX SBC supports Intel® 14nm quad-core Celeron® J3455 2.3GHz on-board SoC with HDMI™/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS |
Package Contents
| Package Content |
|
|---|
