GRAND-SE

64-Bit Quad-Core AMD® G-Series 2.0GHz

End of Life

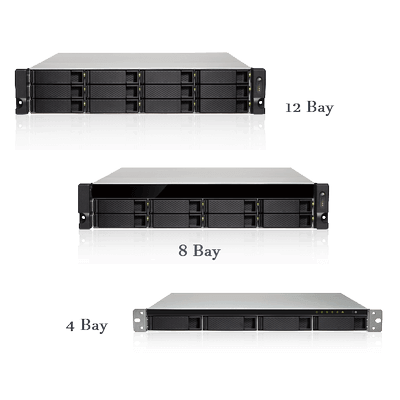

GRAND-SE-04A-1
GRAND-SE-08B-1
GRAND-SE-12B-1
GRAND-SE_Back-1
GRAND-SE-RP_Back-1
  • GRAND-SE-04A-1
  • GRAND-SE-08B-1
  • GRAND-SE-12B-1
  • GRAND-SE_Back-1
  • GRAND-SE-RP_Back-1

End of Life Notice

* Effective Date: 2021/05/18

» The power of 64-bit quad-core processor with AES-NI support
» 2 x SODIMM Slots, Install up to 16 GB memory with 2 x 8GB DIMMs
» 1 x PCIe slot can support 10GbE network card
» Storage expandable via USB3.0, up to 200TB

Hardware Spec.

Form Factor
Form Factor 2U 1U, Rackmount
System
CPU 64-Bit Quad-Core AMD® G-Series 2.0GHz
Memory 2 SODIMM; Memory expandable up to 16GB DDDR3L (8GB x 2)
Memory Max. 16GB DDDR3L (8GB x 2)
Cooling method / System Fan 12B : 2 x 70mm, 12V DC
08B : 2 x 70mm, 12V DC
04A : 2 x 40mm, 12V DC
Physical Characteristics
Rack Height 2U 12bay, 8bay
1U 4bay
Dimensions (LxWxH) (mm) 12B : 89 x 482 x 534 mm
08B : 89 x 482 x 534 mm
04A : 44 x 439 x 499 mm
Net Weight 12B : 16.14kg
08B : 11.02kg
04A : 7.63kg
Storage
Storage Description:(2.5" or 3.5" SATA 6Gb/s, 3Gb/s; hot-swappable
12B: 12 Bay
08B: 8 Bay
04A: 4 Bay)
I/O Interface
Ethernet 4 x LAN(GbE)
I/O Interface External USB 2.0(3 x USB 2.0 : 04A / 2 x USB 2.0 : 08B, 12B)
2 x External USB 3.0
Expansion 1 x PCIe x 4(PCIe 2.0 x 4 slot)
Power
Power Consumption 12B : In Operation: 135.02
08B : In Operation: 94.40
04A : In Operation: 50.46
Power Supply 12B : 250W, 100-240V, 250W (x2), 100-240V (redundant)
08B : 250W, 100-240V, 250W (x2), 100-240V (redundant)
04A : 250W, 100-240V, 250W (x2), 100-240V (redundant)
Environment
Operating Temperature 0~40˚C
Humidity 5 to 95% non-condensing, wet bulb:27˚C.

Ordering Information

GRAND-SE-12B-RP-R10 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W redundant PSU, RoHS
GRAND-SE-12B-R10 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W single PSU, RoHS
GRAND-SE-08B-RP-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W redundant PSU, RoHS
GRAND-SE-08B-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W single PSU, RoHS
GRAND-SE-04A-RP-R10 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W redundant PSU, RoHS
GRAND-SE-04A-R10 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD GX-420MC, 250W single PSU, RoHS

Package Contents

Package Content
  • Ethernet Cable x 2

  • Power cord x 2

  • Flat head screw (for 2.5" HDD)

  • Flat head screw (for 3.5" HDD)
