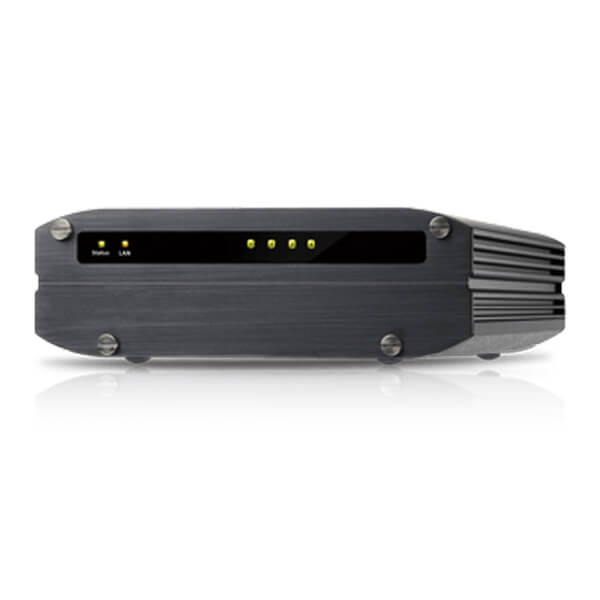

Ultrahigh storage capacity embedded system for smart factory and harsh environment

End of Life

End of Life Notice

* Effective Date: 2020/08/05

» Four 2.5" removable drive bays, and maximum storage capacity support up to 8TB
» 32GB eMMC (storage & boot)
» Rugged design with high resistance to vibration and impact
» Dust-resistant and fanless design
» Wide operating temperature range: -40°C ~ 50°C (-40°F ~ 122°F)

Hardware Spec.

Form factor
SBC Form Factor *CPU: Intel® Atom™ E3845 quad-core 1.91GHz
*Chipset: SoC
2 x 204-pin DDR3L SO-DIMM. 8GB pre-installed (system max. 8GB)
eMMC 32GB(storage and boot)
Input 1: DC power jack, external power adaptor, 12V, 90W, Input: 100-240V
Input 2: 4-pin terminal block, 9-36V DC
Consumption: 40W (Intel® Atom® E3845 CPU with 8 GB 1600 MHz DDR3L memory, 4 x 2.5" HDD)
*Safety / EMC: CE/FCC
*Supported OS: Microsoft® Windows® 10 IoT Enterprise / Linux
I/O Interface
I/O Ports 2 x USB 3.0
2 x USB 2.0
2 x RJ-45 PCIe GbE by Intel® I210
1 x HDMI™ Display port (Resolution: up to 1080p support)
1 x Mic-in
1 x Audio out
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini slot
1 x onboard SIM card slot
Cooling method / System Fan Fanless
Drive Bays 4 x 2.5” SATA HDD/SSD, removable drive bay
Indicators LED Indicators: Status, LAN, HDD 1-4
Physical Characteristics
Construction Wall-mount
Color Black
Dimensions 180 x 247 x 59 mm ( WxDxH )
Weight 1.11 kg/3.2 kg ( Net/Gross )
Operating Temperature -40°C ~ 50°C

Ordering Information

IBX-660-8G-R10 Industrial edge server with four 2.5" drive bays, Intel® Atom™ E3845 quad-core 1.9GHz, pre-installed 8GB DDR3L RAM, 32GB eMMC
IBX-660-W10E64-E-R10 OS Image with Windows Embedded Standard 10 E 64-bit for IBX-660 series, with DVD-ROM, RoHS

Package Contents

Package Content
  • 1 x IBX-660

  • 2 x Ethernet cable

  • 1 x AC adapter

  • 24 x Flat head screw (for 2.5 HDD)

  • 1 x Power cord
