Overview● Dual 10Gbps network based x86 computing accelerator● Decentralized computing architecture for independent tasks● PCI Express x4 delivers scalable and flexible solution● Two Intel® Core™ i7-7567U/i5-7267/Celeron® 3865U processors, up to 4.00 GHz● Support high-end graphics engine - Intel® Iris™ Plus Graphics 650● Pre-installed 32 GB DDR4 (max. 64 GB) and 1 TB NVMe (max. 2 TB)

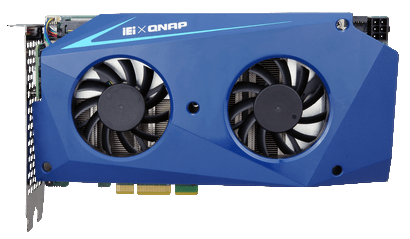

The Mustang-200 is an affordable and scalable advanced computing accelerator for speeding up computations, calculations and applications. Equipped with 2 Intel® Core™ i5/i7 processors, 32GB (4 x 8GB) RAM, and 1TB (2 x 512GB) Intel NVMe SSDs, this PCIe card can be used with your existing system, enabling high-performance computing without costing a fortune. You can install multiple Mustang-200 to further boost your computing capabilities, and assign tasks to any of these units as needed.
Perfect for fog computing
You can pre-process data generated within your organization or across your devices on-premise, to filter out irrelevant information and only keep valuable insights, and then further utilize them by sending or uploading to cloud platforms.
Video processing and graphic rendering made easy
The powerful processors of the Mustang-200 can easily process high-definition 360° surround videos, and can help creative professionals streamline their workflows and accelerate their processes.
Every additional CPU works independently
You can assign tasks to any nodes of your choice, and have real-time control over how every node works.
Expand your total computing capabilities
The Mustang-200 can be immediately installed into your existing system. If you need to perform additional calculations, you can add additional Mustang-200 as they work independently from each other.
Do more in performance-critical applications
No matter what kind of software used, it can be hosted inside the Mustang-200, allowing you to achieve more applications such as artificial intelligence, academic research, and simulations.
This is a single shot demo of video transcoding / streaming and virtualization technologies of the Mustang-200.
Spec Item Description System Chipset Two (2) Intel Kabylake ULT CPU
Intel® Core™ i7-7567U (28 W) (4M Cache, up to 4.00 GHz)
Intel® Core™ i5-7267U (28 W) (4M Cache, up to 3.50 GHz)
Intel® Celeron® 3865U (15W) (2M Cache, 1.80 GHz)
Memory (2 SO-DIMMs per CPU)
4 x DDR4 SO-DIMM
Memory Max. 8GB (Core™ i7/i5 SKU)
2GB (Celeron® 3865U SKU)
Cooling method / System Fan Dual fan Physical Characteristics Dimensions (LxWxH) (mm) 40 X 210 X 111 Storage Storage 2 x M.2(NGFF) :Intel® SSD 600P series (Core™ i7/i5 SKU only) (512GB M.2 80mm PCIe 3.0 x4, 3D1, TLC) I/O Interface Display Output 2 x HDMI :Micro HDMI for debugging I/O Interface 4 x Internal USB 2.0 :pin header for debugging Power Power Consumption 12V@7.41A (Intel® Core™ i7-7567U SKU) Power Supply 12V PCIe 6-pin power input Environment Operating Temperature 0°C ~ 40°C Humidity 10% ~ 90% Card Slot Interface PCIe x4
Item No. Description Mustang-200-i7-1T/32G-R10 Computing Accelerator Card supports Two Intel® Core™ i7-7567U with Intel® 600P 1TB (512GB x2) SSD, 32GB (8GB x4) DDR4, PCIe x4 interface, QTS-Lite, and RoHS Mustang-200-i5-1T/32G-R10 Computing Accelerator Card supports Two Intel® Core™ i5-7267U with Intel® 600P 1TB (512GB x2) SSD, 32GB (8GB x4) DDR4, PCIe x4 interface, QTS-Lite, and RoHS Mustang-200-C-8G-R10 Computing Accelerator Card supports Two Intel® Celeron® 3865U with , 8GB (2GB x4) DDR4, PCIe x4 interface, QTS-Lite, and RoHS
1 x Mustang-200
1 x QIG
1 x 4-pin to PCIe power cable
