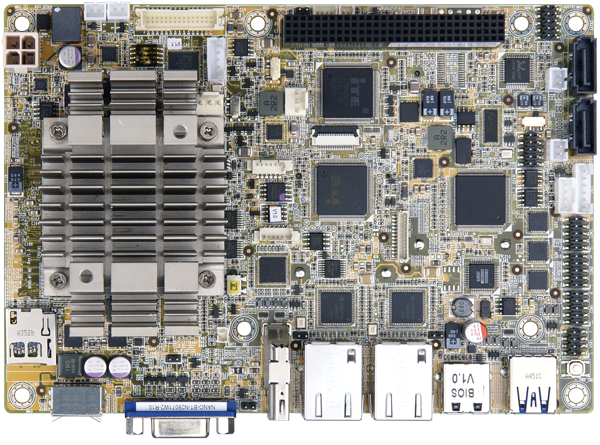

NANO-BT

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC

» EPIC SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC
» Supports dual independent display with LVDS, VGA and HDMI
» 1.35V DDR3L 1333/1066 MHz SDRAM support up to 8 GB
» Support IPMI 2.0 with iRIS-1010 module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
Memory One 204-pin 1333/1066 MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
Memory Max. 8 GB (J1900, N2930, E3827, E3826, E3815) or 4 GB (N2807)
Physical Characteristics
Dimensions (LxWxH) (mm) 115 X 165
Net Weight 350g
Storage
Storage 2 x SATA :3Gb/s with 5V SATA power connector(no RAID)
I/O Interface
Display Output 1 x VGA :up to 2560x1600@60Hz
1 x HDMI :up to 1920x1080@60Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I210-AT PCIe controller with NCSI support
LAN2: Intel® I211-AT PCIe controller
Audio Description: Realtek ALC662 HD Audio codec
1 x Front Audio :2x5 pin
I/O Interface 3 x Internal RS-232 :2x5 pin, p=2.0
1 x Internal RS-422/485 :1 x4 pin, p=2.0
1 x External USB 2.0
1 x External USB 3.2 Gen1x1
3 x Internal USB 2.0 :2x4 pin, p=2.0
1 x PS/2
Expansion 1 x PCIe mini Card Slot :Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 :PCI signal
Other Features
iRIS 1 X iRIS-1010 slot
Power
Power Consumption 12V@1.52A (Intel® Atom™ processor J1900 with one 8 GB 1333 MHz DDR3 memory)
Power Supply 12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Environment
Storage Temperature -20°C ~ 60°C
Operating Shock -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

NANO-BT-i1-N29301-R11 EPIC SBC supports Intel 22nm Quad-Core Celeron N2930 1.83GHz (7.5W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS
NANO-BT-i1-N28071-R11 EPIC SBC supports Intel 22nm Dual-Core Celeron N2807 1.58GHz (4.5W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS
NANO-BT-i1-J19001-R11 EPIC SBC supports Intel 22nm Quad-Core Celeron J1900 2.0GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS

Package Contents

Package Content
  • 1 x NANO-BT single board computer with heatsink

  • 1 x Power cable


Download Specs.
