End of Life Notice
* Effective Date: 2019/12/20
» Built-in QTS Gateway operating system that can be visualized immediately
» Supports remote connection (myQNAPcloud) and hybrid backup (Hybrid Backup Sync)
» QRM+ easily monitors IPMI equipment, servers, PCs and production line equipment
» Q’center centralizes management of multiple QNAP NAS and the IPC equipped with QTS Gateway
» Surveillance Station for remote video surveillance, 24/7 security
» Seven levels of data security protection to protect your valued data
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | CPU: Intel® Atom™ E3845 1.91 GHz |
| System | |
| Cooling method / System Fan | Fanless |
| Chipset | SoC |
| Memory Max. | Two 2 GB 204-pin DDR3L SO-DIMM pre-installed |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay |
| Indicator&Buttons | |
| Indicators | Power/HDD/Com port/DIO |
| I/O Interface | |
| Display | 1 x VGA, 1 x HDMI™ |
| Audio | 1 x Line-out, 1 x Mic-in |
| I/O Interface |
2 x USB 3.0 2 x USB 2.0 2 x RJ-45 1 x PCIe GbE by Intel® I210 controller 1 x PCIe GbE by Intel® I211 controller 1 x 802.11b/g/n 1T1R (optional) |
| Digital I/O | Digital I/O:8-bit digital I/O, 4-bit input/4-bit output |
| Serial |
2 x RS-232 (DB-9 w/3KV isolation protection*) 2 x RS-422/485 (DB-9 w/3KV isolation protection*) |
| Power | |
| Input | 3-pin terminal block: 9 V ~ 30 V DC |
| Power consumption | 12V@2.1A |
| Environment | |
| Operating Temperature | -20°C ~ 70°C with air flow (SSD) i5-4400E |
| Safety & EMC | CE/FCC, MIL-STD-810F 514.5C-2 (with SSD) |
| Physical Characteristics | |
| Construction | Extruded aluminum alloys |
| Dimensions | |
| Dimensions | 74.08 x 140 x 171.5 |
| Weight | |
| Weight | 1.4 kg/2.5 kg |
| Color | |
| Color | Black |
| Expansion Slots | |
| Expansion Slots | 1 x Half-size PCIe Mini slot (w/o USB signal) |
| Option | |
| iRIS | 1 x iRIS-2400 (Optional) |
Ordering Information

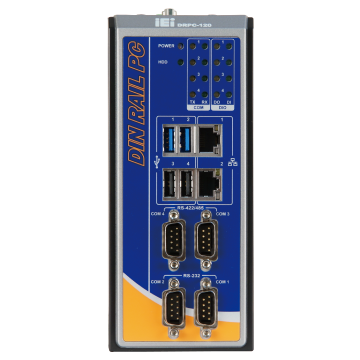

| DRPC-120-QGW-E5-LED/4G-R10 | Fanless embedded system with Intel® Bay-Trail E3845 1.91 GHz, TDP 10W,4 GB DDR3L pre-installed memory, with QTS-Gateway, 1 x VGA, 1 x HDMI™, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, LED indicators, RoHs |
|---|
Package Contents
| Package Content |
|
|---|
