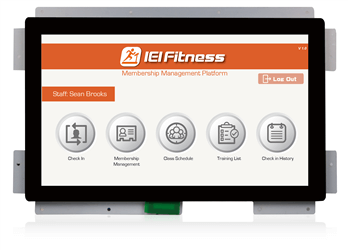

FIT1-W18A-IMX6

Ready for ODM / OEM

End of Life

End of Life Notice

* Effective Date: 2021/02/23

» Support Android 5.0
» Flexibie ID Design.(Open Frame or customized ID Design)
» IEI Customer Reference Board(10.1” / 15.6” / 18.5” share the same main board)
» Freescale Quad Core - A9 1GHz processor
» 10.1” / 15.6” / 18.5” Color TFT LCD
» Waterproof:IPX5(For customized ID)
» Support BLE / ANT + NFC
» Support ATSC / DVBT TV Dongle

Hardware Spec.

System
SBC Model OS Support:Android 5.1
CPU Freescale iMX6 Cortex-A9 Quad Core 1.0 GHz
Memory Max. 2GB DDR3 SDRAM
Communication
Bluetooth BT4.0
Wi-Fi 802.11 b/g/n
Power
Power consumption 12V @2.6A
Power Requirement 12~36V
Environment
Operating Temperature 0°c~+40°c
Humidity 5%~95%
Storage Temperature -10°c~+50°c
Physical Characteristics
Color Black
Dimensions (LxWxH) (mm) 461 x 281 x 93mm
LCD
Size 18.5”
Resolution 1366 (W) x 768 (H)
Brightness (cd/m2) 400 (cd/m²)
Contrast Ratio 1000:1
LCD Color 16.7M
Pixel Pitch (mm) 0.3 x 0.3
Backlight MTBF 50000
Touch
Touch Screen Projected capacitive flat touch
Other Features
Audio 2 x 3W Audio
I/O Interface
I/O Interface 1 x USB 2.0
1 x HDMI
1 x LAN (10/100 Mbps Power over Ethernet)
1 x SD Slot
