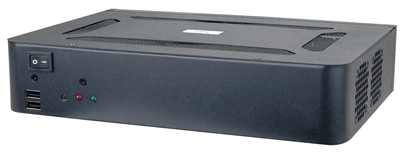

EBC-3200

Embedded Chassis for IEI Single V EBC-3200 oltage Mini-ITX SBC

End of Life

End of Life Notice

* Effective Date: 2018/07/18

» Designs for Mini-ITX SBC with single voltage input
» Flexible storage with CF or 2.5” HDD (optional)
» One PCI or PCIe expansion slot (optional)

Hardware Spec.

Form factor
SBC Form Factor Refer to KINO Series
SBC Size: Mini-ITX (170mm x 170mm)
Expansion Slots
Expansion Slots 1 x Low profile PCI/PCIe
(support by optional modules)
Max. dimensions: 147 mm (L) x 10.5 mm (D)
System
Cooling method / System Fan 2, 40 x 40 x 10
Drive Bays 2 x 2.5” HDD bays (default)
Varies by optional modules
Indicator&Buttons
Buttons Power switch,Reset
Indicators Power LED,Error LED
Physical Characteristics
Construction Desktop, wall mount, VESA mount
Color
Color Black
Dimensions
Dimensions 260 x 180 x 55
Weight
Weight 1.1 kg/2 kg
Environment
Operating Temperature -10°C ~ 50°C with air flow*

Ordering Information

EBC-3200-R10 Mini-ITX embedded chassis,compatible two 2.5" hdd,w/o power adapter,Black,RoHS

Package Contents

Package Content
  • 1 x QIG

  • 2 x Wall mount brackets

  • 1 x Screw set
