• Overview

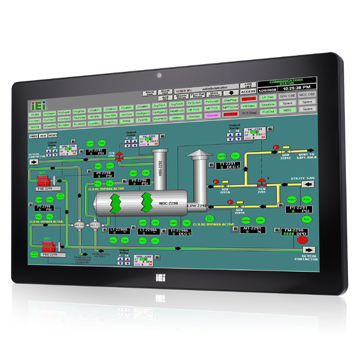

    ● W19” light industrial interactive panel PC
    ● 9 V ~ 30 V wide range DC power input
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● IP64 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Cooling method / System FanFanless
      CPUIntel® Core™ i5 and Celeron® ULT Processor
      Storage1 x 2.5” SATA 3Gb/s HDD bay
      1 x M.2 M key PCIe storage (2280 or 22110)
      1 x mSATA slot
      BluetoothBluetooth v4.0 (M.2 slot)
      WirelessIEEE 802.11a/b/g/n/ac
      I/O Interface
      Ethernet2 x Intel® I211-AT PCIe GbE controller
      I/O Ports and Switches1 x RS-232 by DB-9 (RI/5V/12V)
      1 x RS-232/422/485 by DB-9 (RI/5V/12V)
      2 x GbE LAN
      4 x USB 3.0
      1 x HDMI output
      1 x Power switch
      1 x Reset button
      1 x AT/ATX switch
      1 x 9-30V lockable power jack
      AudioAMP 3W + 3W (internal speaker)
      Audio CodecALC892
      RAMTwo 260-pin DDR4 SO-DIMMs (system max.32GB)
      Power consumption12V@7.1A
      Power Requirement9 V ~ 30 VDC
      Operating Temperature-20°C~50°C
      Safety & EMCCE / FCC
      Humidity10% to 95% (non-condensing)
      Storage Temperature-20°C~60°C
      IP LevelIP 64 compliant front panel
      Physical Characteristics
      ColorBlack C
      MountingPanel, Wall, Rack, Stand and Arm
      VESA 75mm x 75mm / 100mm x 100mm
      Dimensions (LxWxH) (mm)470 x 290 x 70
      Net Weight7.3Kg
      Construction Front PanelPC + ABS Plastic
      Cutout Dimensions443 x 261 (W x H) (mm)
      Resolution1366 x 768 (16:9)
      Brightness (cd/m2)250
      Contrast Ratio1000:1
      LCD Color262K
      Pixel Pitch (mm)0.240 (H) x 0.240 (V)
      Viewing Angle (H-V)170º/160º
      Backlight MTBF30,000 (LED backlight panel)
      Touch ScreenProjected capacitive type with USB interface
      Touch ControllerEETI EXC3180
      Other Features
      Microphonedigital microphone
      Camera2-megapixel with low light function
      OSD FunctionSoftware OSD
      System CoolingFanless
      I/O Interface
      I/O Interface1 x RS-232 (DB-9 (RI/5V/12V))
      1 x RS-422/485 (DB-9 (RI/5V/12V))
      4 x USB 3.2 Gen1x1
      1 x HDMI (output)
      2 x LAN (Gbe)
      1 x Reset Button
      1 x Power Switch
      1 x AT/ATX switch
      1 x Power In (9-30V lockable power jack)
    • Ordering Info.

      Item No. Description
      AFL3-W19C-ULT3-i5/PC/4G-R10 Wide 18.5” 250 cd/m² 1366x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10
      AFL3-W19C-ULT3-C/PC/4G-R10 Wide 18.5” 250 cd/m² 1366x768 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10
    • Package Contents

      • 4 x Round head machine screw

      • 4 x Pan head machine screw

      • 1 x Power cord

      • 1 x Power adapter 63040-010096-100-RS
