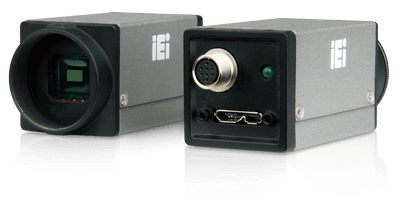

Overview● Compact 1/2” On-Semi CMOS sensor with global shutter● Large pixel: 4.8 µm / Frame rate: 140fps / Resolution: 1280x1024● High bandwidth, provides power and data over a single cable.● Lower cost implementation, Plug-and-play and easier to set up.● Adopted as “USB3 Vision” standard and supported vision software such as Halcon, Merlic, MIL, NI LabVIEW.
High compliance to 3rd party vision library
The architecture of the IEI Camera is based on USB3 Vision and GenICam standard, which offers you compatible interface with name-brand machine vision software such as MVtec Halcon, MERLIC, NI-LabVIEW, MIL …etc.
Spec Item Description Appearance Dimension 29 mm x 29 mm x 57 mm Net Weight 85g Capture Interface Interface Type 1 x USB3.0 Certifications Safety & EMC CE/EMC, FCC LED Safety CE/LVD Environment Operating Temperature 0° ~ 50°C Storage Humidity 30% ~ 95% Storage Temperature -30° ~ 60°C Operating Humidity 20% ~ 80% I/O Interface I/O Interface 1 x Trigger connection(IO connecting cable with an 8-pin male connector) Others Power Requirements 5V via USB 3.0 or 6-18V via Opto-isolated input Parameters Opto-isolated I/O Ports 1 input, 1 output ADC 8-bit/10-bit Pixel Size 4.8µm Readout Method Global shutter Resolution 1280 x 1024 Sensor Name On-Semi PYTHON 1300 Sensor Type CMOS Machine Vision Standard USB3 Vision v1.0 Non-isolated I/O Ports 1 RS-232 Sensor Size (inch) 1/2＂ Auxiliary Output 5V, 100 mA max Chroma Mono Compliance CE, FCC Frame Rate 150FPS (Max) Interface USB 3.0 Lens Mount CS-mount Megapixels 1.3 MP Software Support SDK 1 x Windows OS Support 1 x Microsoft Windows 10 32-bit 1 x Microsoft Windows 10 64-bit 1 x Microsoft Windows 7 32-bit 1 x Microsoft Windows 7 64-bit 1 x Microsoft Windows 8.1 32-bit 1 x Microsoft Windows 8.1 64-bit Sensor Specifications Acquisition Continuous, Single Frame, Multi Frame
Item No. Description HSC-13M3-O-R10 USB 3.0 Monochrome Camera & Opto-isolated I/O, 1/2” On-semi CMOS, Global Shutter, 1280x1024 pixel, without Lens, RoHS
1 x HSC-13M3-O
1 x Mounting bracket
1 x CS to C mount adapter
1 x QIG
