HDC-301E

PCI Express Video/Audio Capture Card with One Channel HDMI™ Input and one channel HDMI™ Output, 1920x1080@60p, and H.264 Hardware Codec

End of Life

End of Life Notice

* Effective Date: 2018/05/18

» 1-channel HDMI™ input with H.264 hardware compression and 1-channel HDMI™ output
» High quality video encoding or decoding up to 1080p60
» HDMI™ output port supports video no delay pass through up to 1080p60, so you can check video while recording
» HDMI™ output port supports playback video file captured by HDC-30X series cards
» Low Power Consumption
» SDK available for customer to create customized applications
» Windows/Linux OS supported

Hardware Spec.

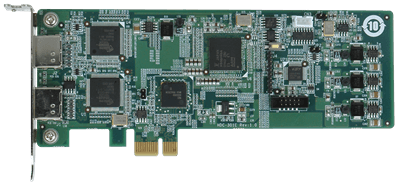

Appearance
Dimension 168 mm x 69 mm
Audio Processing
Audio Compression MPEG-1 Audio Layer 2
Recording Data rate 256k
Capture Interface
Audio Input 1 x Audio Input Channel
1 x Audio Input-HDMI™
Audio Output 1 x Audio Output Channel
1 x Audio Output-HDMI™(support decode file or HDMI™ bypass output)
Interface Type 1 x PCIe x 1
No Delay Passthrough 1 x Audio Output Channel
1 x Video Output Channel
1 x Audio Output-HDMI™
1 x Video Output-HDMI™
Video Input 1 x Video Input Channel
1 x Video Input-HDMI™
Video Output 1 x Video Output Channel
1 x Video Output-HDMI™(support decode file or HDMI™ bypass output)
Environment
Operating Temperature 0°C ~ 65°C, non-condensing
Functionality
Multiple Card Support No
Others
Power Consumption 6.07 W (12V@0.3A, 3.3V@0.72A)
Software Support
SDK 1 x Linux
1 x Windows
OS Support 1 x Linux Ubuntu(16.04 (64-bit) (Kernel version: 4.4.0-21-generic))
1 x Microsoft Windows 7 32-bit
System Requirement
CPU x86 PC compatible computer, Intel® Pentium® 4 2.0GHz or above for video record
Memory 1GB or more
Graphic Card Recommends using a DXVA or CUDA capable graphics card for real-time video playback
Video Processing
Recording Data rate 2-30 Mbps
Recording Formats 1920 x 1080 60p / 59.94p / 50p
1920 x 1080 60i / 59.94i / 50i
1280 x 720 60p / 59.94p / 50p
720 x 480 60i / 59.94i
720 x 576 50i
Video Compression 1 x Hardware Encoder(H.264/AVC High Profile Level 4.2)
Video Input Resolution 1920 x 1080 60p / 59.94p / 50p
1920 x 1080 60i / 59.94i / 50i
1280 x 720 60p / 59.94p / 50p
720 x 480 60i / 59.94i
720 x 576 50i

Ordering Information

HDC-301E-R10 PCI Express video/audio capture card with one HDMI™ input channels and one HDMI™ output channels,1920x1080@60p,and Hardware H.264 codec

Package Contents

Package Content
  • 1 x HDC-301E

  • 1 x Full size bracket

  • 1 x QIG
