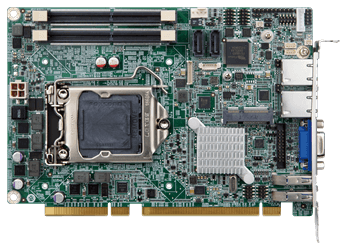

HPCIE-C236

Half-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E3, Core™ i3/ Pentium®/Celeron® CPU per Intel® C236

  • Overview

    ● PICMG 1.3 half-size CPU Card
    ● LGA 1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
    ● Two 260-pin 1600/2133MHz Dual-Channel DDR4 ECC & non-ECC SODIMM supported up to 32GB
    ● Supports dual independent display by VGA & internal DP pin header
    ● PCIe mini Supports mSATA & USB 2.0
    ● Intel® PCIe GbE with Intel® AMT 10.0 supported
    ● Supports RAID 0, 1 function via SATA 6Gb/s
    ● IEI jumper-less function
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor
      MemoryTwo 260-pin 1866/2133 MHz dual-channel DDR4 ECC and non-ECC unbuffered SODIMMs
      Memory Max.32GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)169 X 126
      Net Weight420g
      Storage
      Storage2 x SATA :6Gb/s(RAID 0/1 support)
      1 x mSATA :SATA & USB signal
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 support
      LAN2: Intel® I210 PCIe controller
      I/O Interface2 x Internal RS-232/422/485 :2x5 pin, p=2.0
      2 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 :2x4 pin, p=2.0
      1 x PS/2 :1x6 pin
      1 x DIO :8-bit digital I/O (2x5 pin)
      Expansion1 x PCIe x16 :signal from CPU via golden finger
      (supports x16, or x8 + x8, or x4 + x4 + x8)
      1 x PCIe x4 :signal from Q170 via golden finger
      1 x PCIe mini Card Slot :Full-size slot (support mSATA)
      Power
      Power Consumption5V@0.13A, 12V@7.89A, 3.3V@0.10A, 5VSB@0.20A
      (Intel® Xeon® E3-1275 v5 3.60 GHz with two 16 GB 2133 MHz DDR4 memory)
      Power Supply5V/12V, Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      HPCIE-C236-R10Half-size PICMG 1.3 CPU card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU with Intel® C236, ECC & non-ECC DDR4 SO-DIMM, VGA, iDP, Intel GbE, USB 3.0, mSATA, SATA, PCIe Mini, Intel® AMT and RoHS
    • Package Contents

      • 1 x HPCIE-C236 Single Board Computer

      • 1 x SATA Cable

      • 1 x QIG (Quick Installation Guide)
