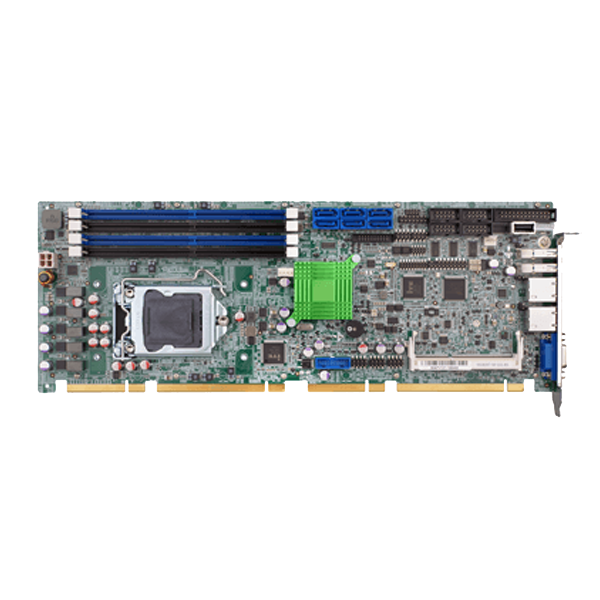

SPCIE-C236

Full-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU per Intel® C236

  • Overview

    ● PICMG 1.3 full-size CPU Card
    ● LGA 1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
    ● Four 288-pin 1867/2133MHz DDR4 ECC & non-ECC unbuffered DIMM
    ● Supports dual independent display by VGA & internal DP pin header
    ● Supports mini-PCIe device & mSATA via mini-PCIe socket
    ● Intel® PCIe GbE with Intel® AMT 11.0 supported
    ● Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s
    ● TPM 1.2 & 2.0 hardware security function supported by TPM module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor
      ChipsetIntel® C236
      MemoryFour 288-pin 1866/2133 MHz dual-channel ECC & non-ECC unbuffered DDR4 DIMMs
      Memory Max.64GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)338 X 126
      Net Weight420g
      Storage
      Storage6 x SATA :6Gb/s (RAID 0/1/5/10 supported)
      1 x mSATA :SATA & USB signal
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x iDP :for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60Hz)
      Ethernet2 x LAN :1 x Intel® I219LM Clarkville-V with Intel® AMT 11.0 supported
      1 x Intel® I210 PCIe controller
      AudioDescription: Support 7.1 channel HD Audio by IEI AC-KIT-892HD kit
      I/O Interface2 x Internal RS-232 :2x5 pin, p=2.54
      2 x Internal RS-232/422/485 :2x5 pin, p=2.54
      7 x Internal USB 2.0 :1 x 180° Type-A, 6 X 2x4 pin, P=2.54
      1 x PS/2 :1x6 pin
      1 x LPT :2x13 pin
      Expansion1 x PCIe x16 :16-lane PCIe link from CPU via golden finger(configured via BIOS)
      2 x PCIe x8 :16-lane PCIe link from CPU via golden finger(configured via BIOS)
      2 x PCIe x4 :16-lane PCIe link from CPU via golden finger(configured via BIOS),4-lane PCIe link from PCH via golden finger(configured via BIOS)
      4 x PCIe x1 :4-lane PCIe link from PCH via golden finger(configured via BIOS)
      1 x PCIe mini Card Slot :supports mSATA
      Other Features
      TPM2x10 pin
      Power
      Power Consumption5V@3.22A, 12V@6.81A, 3.3V@1.21A, 5VSB@0.18A (Intel® Xeon® E3-1275 v5 3.60 GHz
      CPU with 64GB (16GBx4) 2133 MHz DDR4 memory)
      Power Supply5V/12V, Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      SPCIE-C236-R10Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® E3-1200/Core™ i3/Pentium®/Celeron® CPU per Intel® C236, DDR4, VGA/IDP, Dual Intel® PCIe GbE, USB3.0, SATA 6Gb/s, PCIe mini, mSATA, HD Audio, iAMT and RoHS
    • Package Contents

      • 1 x SPCIE-C236 single board computer

      • 1 x Mini jumper pack

      • 1 x SATA cable

      • 1 x QIG
