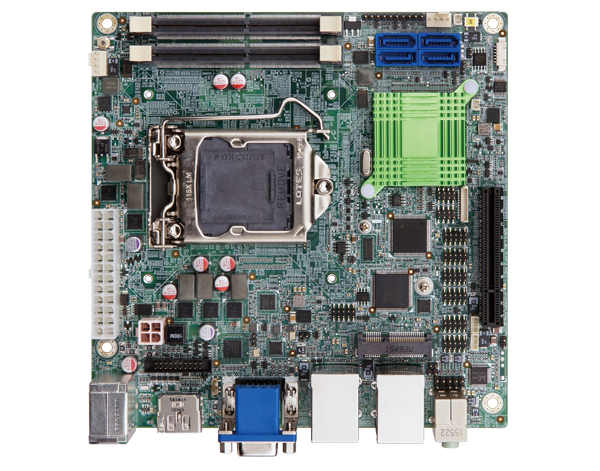

KINO-AQ170

Mini-ITX SBC supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170

» Mini ITX form factor with LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor and DDR4 2133MHz memory support
» Support HDMI 2.0 (4096x2160@60Hz)
» Dual Intel® GbE support Intel® AMT 11.0
» Triple display via HDMI 2.0/HDMI/DP 1.2/VGA/iDP
» High speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA support
» Support IEI jumpless

Hardware Spec.

System
CPU LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
Chipset Intel® Q170
Memory Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM
Memory Max. 64GB
Physical Characteristics
Dimensions (LxWxH) (mm) 170 X 170
Net Weight 450g
Storage
Storage 4 x SATA :6Gb/s(RAID 0/1/5/10 support)
I/O Interface
Display Output 1 x VGA :up to 1920x1200
1 x HDMI :2.0 (up to 4096x2160@60Hz)
1 x Display Port :HDMI/DP (up to 3840x2160@60Hz)
1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN LAN1: Intel® I219LM with (Intel® AMT 11.0 support)
LAN2: Intel® I211 PCIe controller with NCSI support
Audio Description: Realtek ALC662 HD Audio codec
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 4 x Internal RS-232 :2x5 pin, p=2.0
2 x Internal RS-232/422/485 :2x5 pin, p=2.0
2 x External USB 2.0
4 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.0
Expansion 1 x PCIe x8
1 x PCIe mini Card Slot :Full-size slot (support mSATA)
Power
Power Consumption 3.3V@0.62A, 5V@3.3A, 12V@7.51A, 5VSB@0.23A
(Intel® Core™ i7 6700K 4.0GHz CPU with 16 GB (two 8 GB) 2133 MHz DDR4 memory)
Power Supply Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-AQ170-R10 Mini-ITX Motherboard supports 14nm LGA1151 Intel® Skylake CPU Intel® Q170,HDMI2.0/DP/VGA, SATA, Dual Intel®GbE, USB3.0,PCIE mini, HD audio and RoHS

Package Contents

Package Content
  • 1 x KINO-AQ170 single board computer

  • 2 x SATA cable
