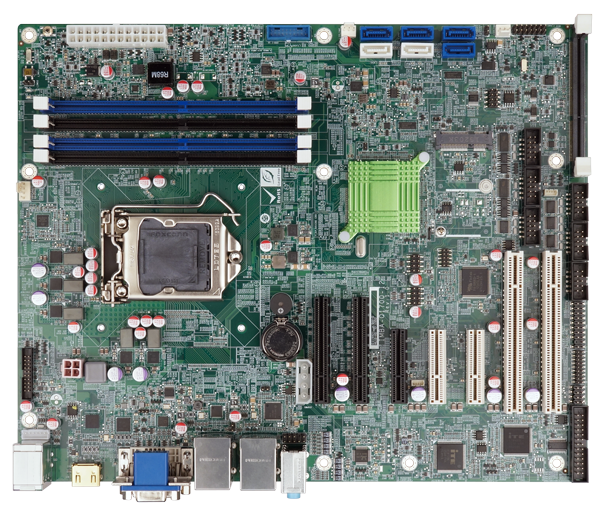

IMBA-C2360

ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series, Core™ i3, Pentium®, Celeron® processor per Intel® C236

» LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
» Dual-channel DDR4 2133 MHz
» Intel® PCIe GbE with Intel® AMT11.0 support
» Support independent triple display with HDMI™, DVI and VGA
» Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
» USB 3.0 and SATA 6Gb/s
» Support IPMI 2.0 via iRIS-2400
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor
Chipset Intel® C236
Memory Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs
Memory Max. 64GB
Physical Characteristics
Dimensions (LxWxH) (mm) 244 X 305
Net Weight 700g
Storage
Storage 6 x SATA :6Gb/s
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x DVI-D :up to 1920x1200@60Hz
1 x HDMI™ :2.0 (up to 4096x2160@60Hz)
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I219LM with Intel® AMT 11.0 support
LAN2: Intel® I210AT PCIe controller with NCSI support
Audio Description: Realtek ALC662 HD codec supports 5.1-channel
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 4 x Internal RS-232 :2x5 pin, p=2.54
2 x Internal RS-232/422/485 :2x5 pin, p=2.54
2 x External USB 2.0
4 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.0
2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
1 x PS/2 :1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
1 x LPT :2x13 pin, p=2.54
Expansion 2 x PCIe x8
3 x PCIe x4
2 x PCI Slot
1 x PCIe mini Card Slot :Full-size slot(support mSATA)
Other Features
iRIS 1 X iRIS-2400 slot
TPM 2 x 10 pin
Power
Power Consumption 3.3V@1.51A, 5V@3.31A, 12V@9.02A, 5VSB@3.7A (Intel® Xeon® E3-1275 v5 3.60
GHz CPU with 32 GB (four 8GB) 2133 MHz DDR4 memory)
Power Supply Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-C2360-i2-R10 ATX Motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5,Core™ i3, Pentium®, Celeron®per Intel®C236, DDR4, triple Independent displays VGA/DVI-D/ HDMI™ 2.0,Dual Intel®GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI2.0 and RoHS

Package Contents

Package Content
  • 1 x IMBA-C2360-i2 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
