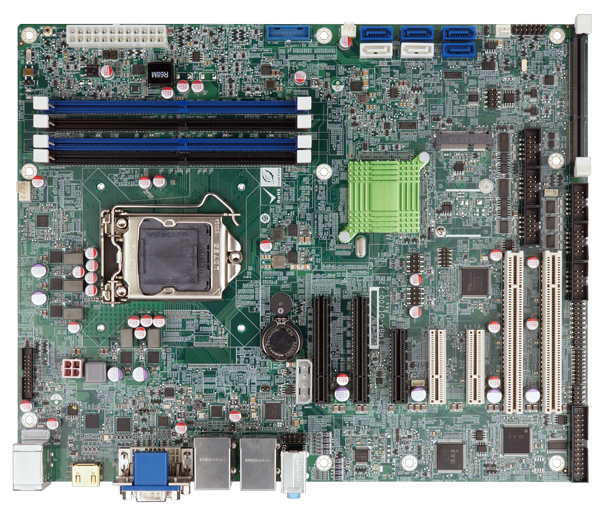

IMBA-C2360-i2

ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series,
Core™ i3, Pentium®, Celeron® processor per Intel® C236

  • Overview

    ● LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
    ● Dual-channel DDR4 2133 MHz
    ● Intel® PCIe GbE with Intel® AMT11.0 support
    ● Support independent triple display with HDMI, DVI and VGA
    ● Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
    ● USB 3.0 and SATA 6Gb/s
    ● Support IPMI 2.0 via iRIS-2400
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor
      ChipsetIntel® C236
      MemoryFour 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs
      Memory Max.64GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)244 X 305
      Net Weight700g
      Storage
      Storage6 x SATA :6Gb/s
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x DVI-D :up to 1920x1200@60Hz
      1 x HDMI :2.0 (up to 4096x2160@60Hz)
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I219LM with Intel® AMT 11.0 support
      LAN2: Intel® I210AT PCIe controller with NCSI support
      AudioDescription: Realtek ALC662 HD codec supports 5.1-channel
      1 x Line in :on rear IO
      1 x Line out :on rear IO
      1 x Mic :on rear IO
      1 x Front Audio :2x5 pin
      I/O Interface4 x Internal RS-232 :2x5 pin, p=2.54
      2 x Internal RS-232/422/485 :2x5 pin, p=2.54
      2 x External USB 2.0
      4 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 :2x4 pin, p=2.0
      2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
      1 x PS/2 :1x6 pin
      1 x DIO :8-bit digital I/O (2x5 pin)
      1 x LPT :2x13 pin, p=2.54
      Expansion2 x PCIe x8
      3 x PCIe x4
      2 x PCI Slot
      1 x PCIe mini Card Slot :Full-size slot(support mSATA)
      Other Features
      TPM2x10 pin
      iRIS1 X iRIS-2400 slot
      Power
      Power Consumption3.3V@1.51A, 5V@3.31A, 12V@9.02A, 5VSB@3.7A (Intel® Xeon® E3-1275 v5 3.60
      GHz CPU with 32 GB (four 8GB) 2133 MHz DDR4 memory)
      Power SupplySupport AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      IMBA-C2360-i2-R10ATX Motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5,Core™ i3, Pentium®, Celeron®per Intel®C236, DDR4, triple Independent displays VGA/DVI-D/ HDMI 2.0,Dual Intel®GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI2.0 and RoHS
    • Package Contents

      • 1 x IMBA-C2360-i2 single board computer

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
