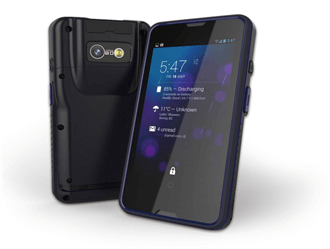

MODAT-532

Mobile Data Collector

End of Life

End of Life Notice

* Effective Date: 2018/12/07

» Stylish rugged design and ultra-light industrial Android mobile device
» Octa-Core Cortex A53 64bit 1.7 GHz Processor
» 5.3” display PDA
» Optional:
GSM 850/900/1800/1900
WCDMA 2100/1900/850/900
4G LTE
FDD (Band 1,2,3,7,8,20)
TDD (Band 38,39,40,41)
» Micro USB port and microSD card slot (max. 32 GB) for maximum connectivity
» Android 5.0 OS
» 1D/2D imager scan engine
» NFC (device to device communication, card reader)

Hardware Spec.

Communication
Bluetooth 4.0 LE
GPS GPS / Glonass
modem GSM ( 800, 900, 1800, 1900)
WCDMA (2100, 1900, 850, 900)
4G FDD(Band1,2,3,7,8,20), TDD(38,39,40,41)
Wi-Fi 802.11a/b/g/n
Display
Brightness(cd/m2) 350
LCD Size 5.3”
Max Resolution 540(H) x 960(V)
Touch Screen 5-point capacitive
Viewing Angle 80/80/80/80 Deg.
Environment
Humidity 10% ~ 95%, non condensing
Operating Temperature -10°C ~ 50°C
I/O Interface
I/O Interface 1 x WIFI(802.11a/b/g/n)
1 x USB 2.0(Micro USB)
1 x Mic
1 x Speaker(0.5W)
Physical Characteristics
Dimensions (LxWxH) (mm) 160.9 mm x 85.4 mm x 28.85 mm
Power
Battery 3900 mAh
Power adapter 5V/3A
System
CPU Octa-Core Cortex A53 64bit 1.7 GHz
On-board Memory 16GB eMMC
2G LPDDR2
Weight
Weight 386 g

Ordering Information

MODAT-532A-QA53-R20 5.3" 350 cd/㎡, Capacitance Touch, Android 5.0 PDA with Octa-core Cortex-A53 1.7 GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, GSM(3G, LTE), GPS, FM, 13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, RoHS
MODAT-532A-QA53-ET-R20 5.3" 350 cd/㎡, Capacitance Touch, Android 5.0 PDA with Octa-core Cortex-A53 1.7 GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, GSM(3G, LTE), GPS, FM, 13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, RoHS

Package Contents

Package Content
  • 1 x USB Cable

  • 1 x AC-DC Adapter

  • 1 x Hand Strap
