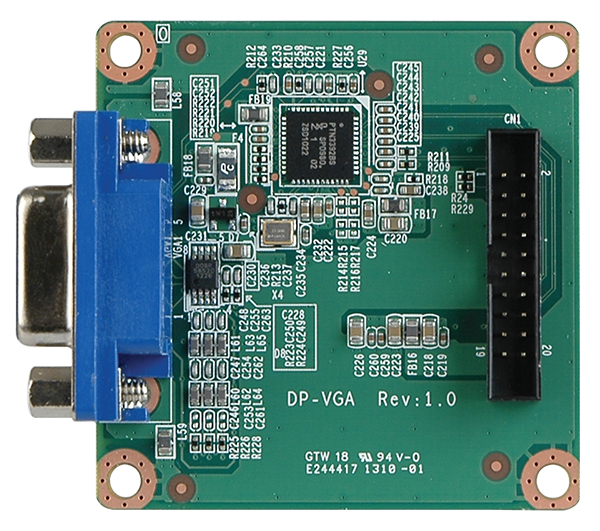

DisplayPort to VGA Converter Board (for IEI iDP Connector)

End of Life

End of Life Notice

* Effective Date: 2022/06/23

» DisplayPort to VGA output
» Support up to 1920x1200 resolution

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 50 X 50
I/O Interface
Display Output 1 x VGA
Operating Temperature -10°C ~ 60°C
Humidity 5% ~ 95%, non-condensing

Ordering Information

DP-VGA-R10 DisplayPort to VGA converter board (For iEi IDP connector)
