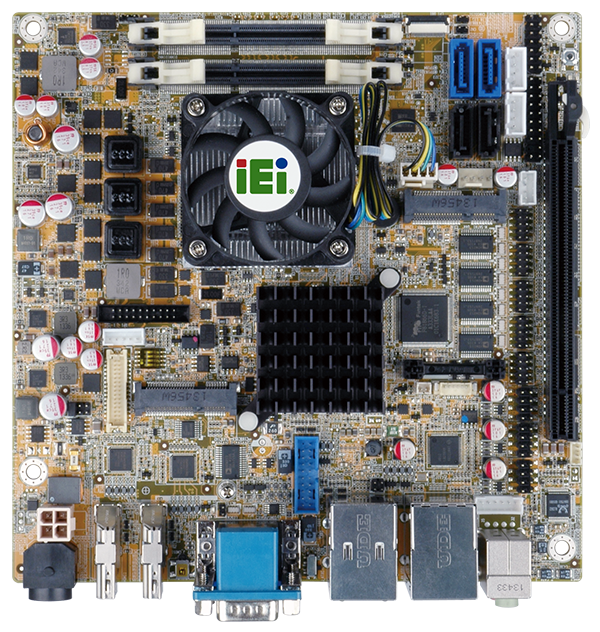

KINO-DQM871-i1

Mini-ITX SBC supports 4th generation 22nm IntelR mobile processors,

  • Overview

    ● 4th generation IntelR mobile Core? i7/i5/i3 or CeleronR on-board processor
    ● DDR3 1066/1333/1600 MHz dual-channel SDRAM
    ● HDMI 1.4a compliant, triple independent display supported
    ● 3D micro-architecture enhancement supports DX11.1, OCL 1.2 and OGL3.2
    ● Rich media acceleration for hardware decode and encode acceleration
    ● IntelR GbE LAN with IntelR AMT 9.0 support
    ● High speed I/O interface for PCIe Gen 3.0 add-on card, USB 3.0 and SATA 6Gb/s supported
    ● Supports dual PCIe Mini expansion for PCIe Mini device and mSATA
    ● IEI jumper-less function
    ● Support IPMI 2.0 with iRIS-1010 module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® mobile Core™ i7-4700EQ on-board
      processor with Intel® AMT 9.0 support (2.4GHz, quad-core, 6MB cache, TDP=47W)
      Intel® mobile Core™ i5-4402E on-board
      processor with Intel® AMT 9.0 support (1.6GHz, dual-core, 3MB cache, TDP=25W)
      Intel® mobile Core™ i5-4400E on-board
      processor with Intel® AMT 9.0 support (2.7GHz, dual-core, 3MB cache, TDP=37W) (by request)
      ChipsetIntel® QM87
      MemoryTwo 204-pin 1600/1333 MHz dualchannel DDR3 SDRAM unbuffered DIMMs
      Memory Max.16GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)170 X 170
      Net Weight450g
      Storage
      Storage4 x SATA :2 X 3Gb/s, 2 X 6Gb/s(RAID 0/1/5/10 supported)
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      2 x HDMI :up to 2500x1600@60Hz
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I217LM with Intel® AMT 9.0 support
      LAN2: Intel® I210-AT PCIe controller
      AudioDescription: Realtek ALC662 HD codec supports 5.1-channel
      1 x Line out :on rear IO
      Mic :on rear IO
      I/O Interface1 x External RS-232
      4 x Internal RS-232 :2x5 pin, P=2.0
      1 x Internal RS-422/485 :1x4 pin, p=2.0
      2 x External USB 2.0
      1 x External USB 3.2 Gen1x1
      6 x Internal USB 2.0 :2x4 pin, P=2.54
      2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
      1 x PS/2 :1x6 pin
      Expansion1 x PCIe x16
      1 x PCIe mini Card Slot :Full-size slot(support mSATA)
      Other Features
      TPM2x10 pin
      Power
      Power Consumption12V@6.03A (Intel® Core™
      i7-4770EQ, 2.4GHz CPU with 8 GB (two 4 GB)
      1333 MHz DDR3 memory)
      Power Supply12V DC input
      1 x Internal power connector (2x2 pin)
      1 x External DC jack (4-pin DIN)
      Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      KINO-DQM871-i1-i7-R10 Mini-ITX SBC supports Intel® 22nm 4th Generation Mobile Core™ i7-4700EQ processor (47W), HDMI / VGA / LVDS / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
      KINO-DQM871-i1-i5E-R10 Mini-ITX SBC supports Intel® 22nm 4th Generation Mobile Core™ i5-4402E processor(25W), HDMI / VGA / LVDS / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
    • Package Contents

      • 1 x KINO-DQM871-i1 motherboard

      • 2 x SATA with power output cable

      • 1 x CPU cooler

      • 1 x Mini jumper pack

      • 1 x I/O shielding

      • 1 x QIG
