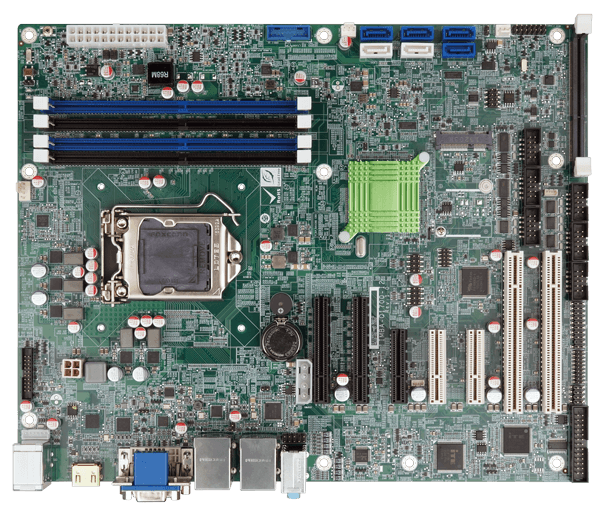

IMBA-Q170-i2

ATX motherboard supports 14nm LGA1151 IntelR CPU IntelR Q170,

  • Overview

    ● LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● Dual-channel DDR4 2133 MHz
    ● Support triple display with HDMI, DVI and VGA
    ● Support USB 3.0, SATA 6Gb/s and PCI Express Gen3
    ● Support IPMI 2.0 via iRIS-2400 module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPULGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
      ChipsetIntel® Q170
      MemoryFour 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs
      Memory Max.64GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)244 X 305
      Net Weight700g
      Storage
      Storage6 x SATA :6Gb/s (RAID 0/1/5/10 supported)
      I/O Interface
      Display Output1 x VGA :up to 1920x1200@60Hz
      1 x DVI-D :up to 1920x1200@60Hz
      1 x HDMI :2.0 (up to 4096x2160@60Hz)
      1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I219LM with Intel® AMT 11.0 support
      LAN2: Intel® I210AT PCIe controller with NCSI support
      AudioDescription: Realtek ALC662 HD codec supports 5.1-channel
      1 x Line in :on rear IO
      1 x Line out :on rear IO
      1 x Mic :on rear IO
      1 x Front Audio :2x5 pin
      I/O Interface4 x Internal RS-232 :2x5 pin, P=2.54
      2 x Internal RS-232/422/485 :2x5 pin, p=2.54
      2 x External USB 2.0
      4 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 :2x4 pin, P=2.0
      2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
      1 x PS/2 :1x6 pin
      1 x DIO :8-bit digital I/O (2x5 pin)
      1 x LPT :2x13 pin, p=2.54
      Expansion2 x PCIe x8
      3 x PCIe x4
      2 x PCI Slot
      1 x PCIe mini Card Slot :Full-size slot (support mSATA)
      Other Features
      iRIS1 X iRIS-2400 slot
      TPM2x10 pin
      Power
      Power Consumption3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSB@3.4A
      (Intel® Core™ i7 6700K 4.0GHz CPU with 32 GB (four 4 GB) 2133 MHz DDR4 memory)
      Power Supplysupport AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-30°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      IMBA-Q170-i2-R10ATX Motherboard supports 14nm LGA1151 Intel® Core™ Intel® Q170, DDR4, Three Independent Displays VGA/ DVI-D / HDMI 2.0/ Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI2.0 and RoHS
    • Package Contents

      • 1 x IMBA-Q170-i2 single board computer

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
