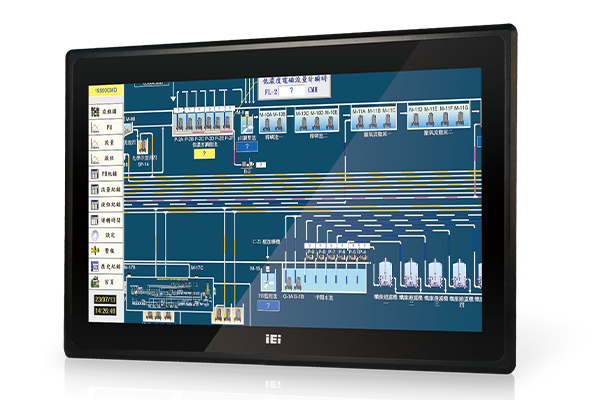

• Overview

    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● Wide range 9V~36V DC input
    ● HDMI / DisplayPort / VGA flexible video input solution
    ● Projected capacitive multi-touch and resistive single touch options
    ● Wide temperature support
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Backlight MTBF(hrs)30000
      Contrast Ratio1000:1
      LCD Size21.5”(16:9)
      Max Resolution1920 (W) x 1080 (H)
      Humidity10% to 95% (non-condensing)
      IP LevelIP 65 compliant front panel
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      I/O Interface
      I/O Ports and Switches1 x VGA (DB-15)
      1 x HDMI(F17A only)
      1 x DisplayPort1.1
      1 x USB 2.0 (touch)
      1 x RS-232 (reserved for resistive touch ATO)
      1 x Lockable 12V DC jack
      1 x 9V-36V terminal block
      LCD Color16.7M
      Pixel Pitch (mm)0.28 x 0.28
      Viewing Angle (H-V)170° / 160°
      Physical Characteristics
      Cutout Dimensions340 x 532
      Dimensions (LxWxH) (mm)358.4 x 550.4 x 49.1
      Power adapter9V~36V DC
      Touch Screen2-point projected capacitive touch window/ EETI EXC7200
      Weight6.3 / 9.6
    • Ordering Info.

      Item No. Description
      DM-F22A/PC-R20 21.5" 250 cd/m² FHD LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20
    • Package Contents

      • 1 x Touch Pen

      • 1 x USB Cable

      • 1 x VGA Cable
