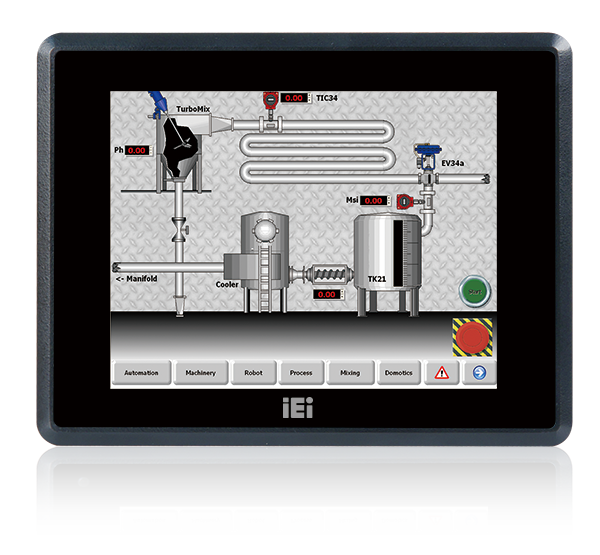

• Overview

    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● DC input
    ● DVI / VGA flexible video input solution
    ● Resistive single touch
    ● Wide temperature support
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Backlight MTBF(hrs)50000
      Contrast Ratio20.8340277777778
      LCD Size8”(4:3)
      Max Resolution800 (W) x 600 (H)
      Humidity10% to 95% (non-condensing)
      IP LevelIP 65 compliant front panel
      Operating Temperature-20°C ~ 60°C (with air flow)
      Storage Temperature-20°C ~ 70°C
      I/O Interface
      I/O Ports and Switches1 x VGA (DB-15)
      1 x DVI
      1 x USB 2.0 (touch)
      1 x RS-232 (reserved for resistive touch ATO)
      1 x Lockable 12V DC jack
      LCD Color262K
      Pixel Pitch (mm)0.0675 x 0.2025
      Viewing Angle (H-V)140°/120°
      Physical Characteristics
      Cutout Dimensions206 x 154
      Dimensions (LxWxH) (mm)222.2 x 182.2 x 42.7
      Power adapter12V DC
      Touch ControllerPenmount 6000
      Touch Screen5-wire resistive single touch window
    • Ordering Info.

      Item No. Description
      DM-F08A/R-R10 8" 500 cd/m² SVGA LCD monitor, Aluminum front panel, Black color, W/ USB resistive touch screen, 12V DC input, R10
    • Package Contents

      • 1 x Touch Pen

      • 1 x USB Cable

      • 1 x VGA Cable

      • 1 x Adapter

      • 1 x AC power cord
