PPC-F22A-H81

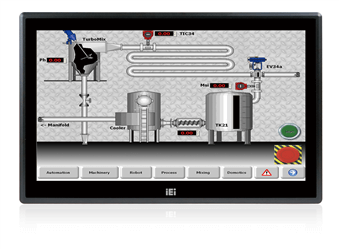

Intelligent Industrial Panel PC

End of Life

End of Life Notice

* Effective Date: 2020/09/24

» Support IEI iRIS-2400 IEI remote intelligent solution
» Scalable Intel® H81 chipset supports LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP
» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» Projected capacitive multi-touch
» Dual full-size PCIe Mini card expansion
» AC/DC power input options (DC model by build to order manufacturing)

Hardware Spec.

Display
Backlight MTBF(hrs) 30000
Brightness(cd/m2) 250
Contrast Ratio 1000:1
LCD Size 21.5”(16:9)
Max Resolution 1920 (W) x 1080 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -10°C~50°C (14°F~122°F)
Storage Temperature -20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches 2 x RJ-45 LAN Port
2 x USB 3.0
4 x USB 2.0
1 x HDMI output
4 x RS-232
1 x RS-422/485
1 x VGA output
1 x AC/DC power plug (DC model is by build to order manufacturing)
1 x AT/ATX switch
1 x Clear CMOS
1 x Reset button
1 x Power switch
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.25 x 0.25
Viewing Angle (H-V) 170° / 160°
Physical Characteristics
Cutout Dimensions 341 x 536
Dimensions (LxWxH) (mm) 350.4 x 550.4 x 71.7
Power
Power Supply AC input ATX power supply
220W power supply
Input: 90VAC-264VAC, 50/60Hz
Output (max.): 3.3V@10A, 5V@14A, 12V@14A, -12V@0.3A
Touch
Touch Screen 2-point projected capacitive touch window (EETI EXC7200), 6H
Weight
Weight 10.1/14.4

Ordering Information

PPC-F22AA-H81i-i3/4G/PC-R13 21.5" 250 cd/m2 FHD Panel PC with Intel H81 chipset, Core i3 Dual Core i3-4330 Processor (4M Cache, 3.50 GHz), TDP 54W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622B, AG projective capacitive touch window, R13
PPC-F22AA-H81i-i5/4G/PC-R13 21.5" 250 cd/m2 FHD Panel PC with Intel H81 chipset, Core i5 Quad Core i5-4570S Processor(6M Cache, up to 3.60 GHz), TDP 65W, 2GB RAM*2, support iRIS-2400,black color,PSU ACE-A622B, AG projective capacitive touch window,R13
PPC-F22AA-H81i-P/4G/PC-R13 21.5" 250 cd/m2 FHD Panel PC with Intel H81 chipset, Intel® Pentium® Processor G3420 (3M Cache, 3.20 GHz), TDP 53W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622B, AG projective capacitive touch window, R13

Package Contents

Package Content
  • 1 x Power Cord 1 Depends on shipping region Screw Kit

  • 1 x Touch Pen
