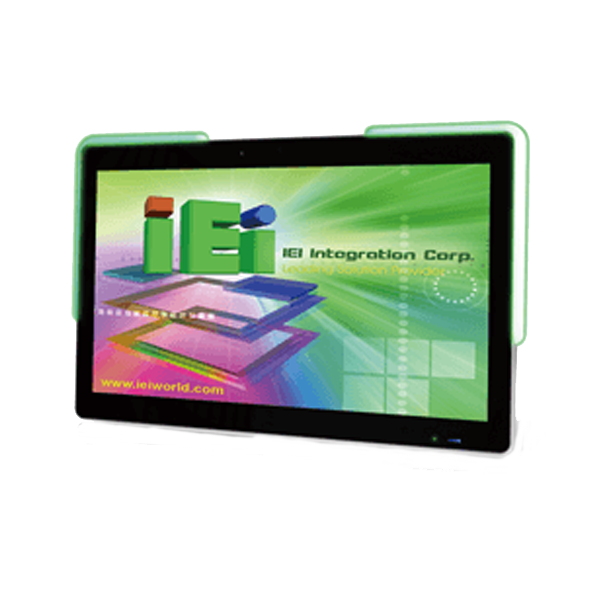

AFL2-W21A-H61

Intel® Core™ i7/i5/i3 and Pentium® Processor

End of Life

End of Life Notice

* Effective Date: 2017/12/31

» Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) pre-installed with 4GB (2GB x 2)
» Projected capacitive touchscreen supported
» Wi-Fi 802.11b/g/n high speed wireless
» EM or Mifare RFID reader
» Programmable colorful LED light bar
» Built-in two 3W speakers and microphone
» Auto dimming control
» Light fanless design
» Wide range 9~36 VDC input

Hardware Spec.

Communication
Wi-Fi IEEE 802.11b/g/n
Dimensions
Dimensions 546.85 x 345.82 x 70.35
Environment
Operating Temperature -10°C~50°C
Storage Temperature -20°C~60°C
I/O Interface
I/O Ports and Switches 2 x RS232 (DB9 Connector)
1 x RS422/485 COM Port (DB9 connector)
2 x GbE LAN (RJ-45 connector)
3 x USB 2.0
2 x USB 3.0
1 x HDMI
RAM Support two 204-pin DDR3 SO-DIMM slot (max.
16GB) preinstalled with 4GB (2GB x 2)
LCD
Backlight MTBF 30000 (LED backlight panel)
Brightness (cd/m2) 250
Contrast Ratio 1000:1
LCD Color 16.7M
Pixel Pitch (mm) 0.248 (H) x 0.248 (V)
Resolution 1920 x 1080
Size W21.5"(16:9)
Viewing Angle (H-V) 170º/160º
Other Features
Camera 2-megapixel camera with low light function
Microphone Digital Microphone
System Cooling Fanless
Power
Power Requirement 9~36 VDC
Storage
Storage 1 x 2.5″ SATA 3Gb/s HDD Bay
System
Chipset Intel® ICH61
CPU Intel® Core™ i7/i5/i3 and Pentium® processors
Touch
Touch Controller EETI EXC7200 & EXC5404
Touch Screen projected capacitive type with USB interface
Weight
Weight 8.27Kg
I/O Interface
I/O Interface 1 x Type K connector
3 x USB 2.0
2 x USB 3.0
1 x Reset Button
1 x RS-422/485((DB-9))
2 x RS-232((DB-9))
1 x Power Switch
1 x Mic
1 x Line out
2 x LAN(GbE LAN (RJ-45 connector))
1 x HDMI
1 x DC Input Jack(9-36V DC jack)
1 x AT/ATX switch
1 x VGA((DB-15))
1 x Clear CMOS Button

Ordering Information

AFL2-W21A-H61-P/PC-R11 21.5" 250cd/m² FHD panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone,R11
AFL2-W21AB-H61-i5/PC-R11 21.5" 250cd/m2 FHD panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
AFL2-W21A-H61-i3/PC-R11 21.5" 250cd/m² FHD panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone,R11
AFL2-W21AB-H61-P/PC-R11 21.5" 250cd/m2 FHD panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
AFL2-W21A-H61-i5/PC-R11 21.5" 250cd/m² FHD panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone,R11
AFL2-W21AB-H61-i3/PC-R11 21.5" 250ccd/m2 FHD panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11

Package Contents

Package Content
  • 1 x Power Adpater

  • 4 x Screw Pack M3

  • 4 x Screw Pack M4
