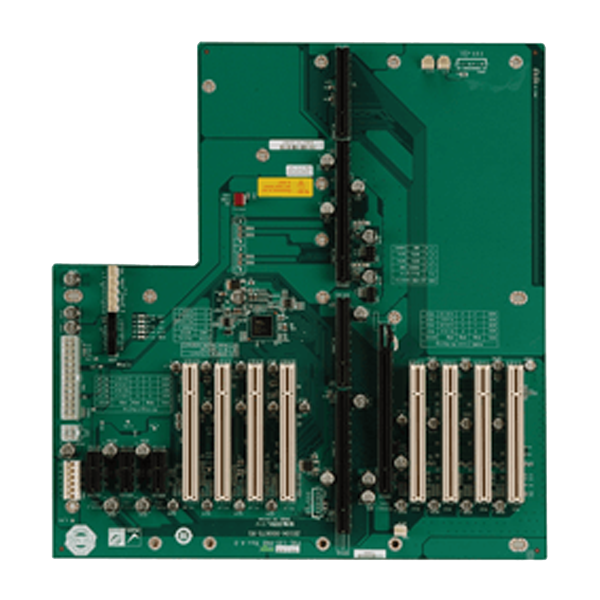

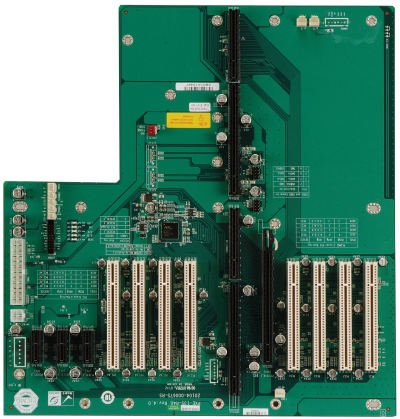

PXE-13S

13-slot backplane with one PCIe x16 slot, three PCIe x1 slots and eight PCI slots

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      MountingRACK-3000G
      RACK-305G
      RACK-360G
      I/O Interface
      I/O Interface4 x Internal USB 2.0 :by Pin Header
      Expansion1 x PCIe x16
      3 x PCIe x4
      8 x PCI Slot
      Power
      Power Supply24+4-pin ATX
    • Ordering Info.

      Item No. Description
      PXE-13S-R51 13-Slot PICMG 1.3 PCIe to PCI Bridge Backplane via ITE IT8892E, one PCIe x16, three PCIe x1, eight PCI, RoHS
      RACK-3000GB-R21 4U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
      RACK-3000GW-R21 4U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
      RACK-305GB-R22 4U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
      RACK-305GW-R22 4U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
      RACK-360GB-R22 4U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
      RACK-360GW-R22 4U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
