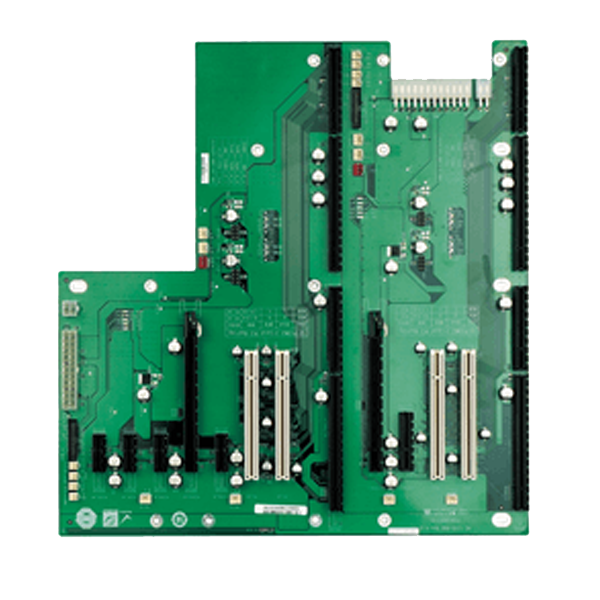

PE-13SD

13-slot backplane with two PCIe x16 slots, one PCIe x4 slot, four PCIe x1 slot and four PCI slots

  • Specifications

    • Hardware Spec.

      Spec Item Description
      I/O Interface
      I/O Interface8 x Internal USB 2.0
      Expansion2 x PCIe x16 :1/1
      1 x PCIe x4 :1/0
      4 x PCIe x1 :0/4
      2 x PCI Slot :2/2
      Power
      Power SupplyDual 24+4 pin TX
    • Ordering Info.

      Item No. Description
      PE-13SD-R40PICMG 1.3 ,13 Slots Daul System Backplane with 2PCIe x16 and 1PCIe x4 and 4PCIe x1 and 4PCI Slots,RoHS
      RACK-305GB-R224U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
      RACK-305GW-R224U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
      RACK-3000GW-R214U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
      RACK-360GW-R224U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
      RACK-3000GB-R214U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
      RACK-360GB-R224U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
