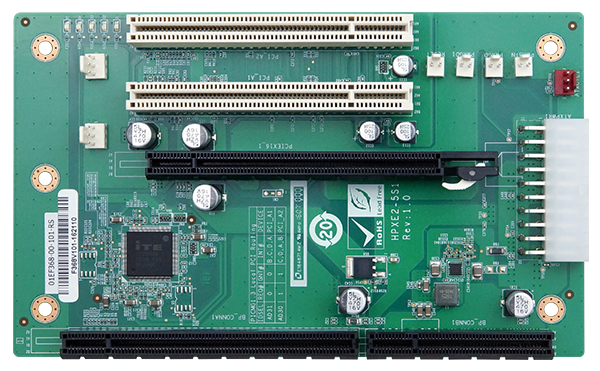

HPXE2-5S1

5-slot PICMG 1.3 backplane for half-size SBC, with two PCI slots and one PCIe x16 slot (x16 signal)

• 1 x PCIe x1
• 2 x PCI Slot

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 107.2 X 175.2
I/O Interface
Expansion 1 x PCIe x1
2 x PCI Slot

Ordering Information

RACK-500GW-R21 5U Height 5 Slots Full-size Chassis,White,W/O PSU,RoHS
RACK-500GB-R21 5U Height 5 Slots Full size Chassis,Black,W/O PSU,RoHS
PR-1500GW-R12 5-Slot Half size Chassis,White,W/O PSU,RoHS
HPXE2-5S1-R10 5-slot PICMG 1.3 backplane for half-size SBC, with two PCI slots and one PCIe x16 slot (x16 signal)

Download Specs.
