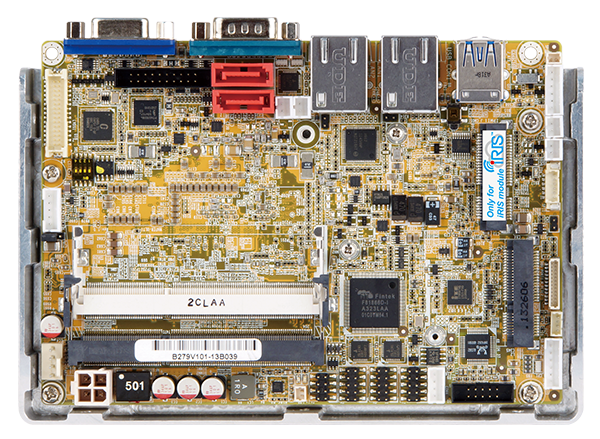

WAFER-ULT-i1

3.5” SBC supports Intel® 22nm 4th/ 14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT), VGA/LVDS/iDP, Dual GbE, PCIe Mini, USB 3.0, SATA 6Gb/s Audio, iRIS-1010 and RoHS

  • Overview

    ● 3.5 form fator with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DIMMs
    ● 12V only single voltage design with AT/ATX mode support
    ● 18/24-bit dual-channel LVDS support
    ● Support triple independent display via LVDS, VGA and iDP
    ● Support PCIe Mini card slot for mSATA, 3G card, wireless card and DOM
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU4th generation Intel® mobile ULT on-board SoC
      Intel® Core™ i7-4650U (1.7GHz, dual-core, 4MB cache, TDP=15W)
      Intel® Core™ i5-4300U (1.9GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Core™ i3-4010U (1.7GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Celeron® processor 2980U (1.6GHz, dual-core, 2MB cache, TDP=15W)
      MemoryTwo 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM
      Memory Max.16GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)146 X 102
      Net Weight250
      Storage
      Storage2 x SATA :6Gb/s
      1 x mSATA
      I/O Interface
      Display Output1 x VGA :up to 2560x1600@60Hz
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      1 x iDP :for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      EthernetLAN :1 x Intel® I218LM PHY with Intel® AMT 9.0 support, 1 x Intel® I210-AT PCIe controller with NCSI support
      AudioDescription: Realtek ALC662 HD Audio codec
      1 x audio (2x5 pin)
      I/O Interface1 x External RS-232
      2 x Internal RS-232 :2x5 pin, P=2.0
      1 x Internal RS-422/485 :1x4 pin, P=2.0
      2 x External USB 3.2 Gen1x1
      2 x Internal USB 2.0 :2x4 pin, P=2.0
      1 x PS/2 :1x6 pin
      Expansion1 x PCIe mini Card Slot :mSATA support
      Power
      Power Consumption12V@2.72A (Intel® Core™ i5-4300U CPU with two 8 GB 1600 MHz DDR3 memory)
      Power Supply12V only DC Input,1 x internal power connector(2 x 2 pin),support AT/ATX mode
      Environment
      Operating Temperature-10°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      WAFER-ULT-i1-i7-R113.5" SBC with Intel 22nm 4th Gen ULT Mobile Core i7-4650U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
      WAFER-ULT-i1-C-R113.5" SBC with Intel 22nm 4th Gen ULT Mobile Celeron 2980U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
      WAFER-ULT-i1-i3-R113.5" SBC with Intel 22nm 4th Gen ULT Mobile Core i3-4010U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
      WAFER-ULT-i1-i5-R113.5" SBC with Intel 22nm 4th Gen ULT Mobile Core i5-4300U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
    • Package Contents

      • 1 x WAFER-ULT single board computer with heatsink enclosure

      • 1 x Audio cable

      • 1 x Dual-port USB 2.0 cable

      • 1 x Power cable

      • 1 x QIG

      • 2 x SATA with 5V output cable kit
